Product Detailed Parameters
- Description：IC RF AMP VSAT 7GHZ-11GHZ MODULE
- Series：-
- Mfr：Analog Devices Inc.
- Package：Box
- Frequency：7GHz ~ 11GHz
- P1dB：22dBm
- Gain：9dB
- Noise Figure：6dB
- RF Type：VSAT
- Voltage - Supply：7V
- Current - Supply：300mA
- Test Frequency：-
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

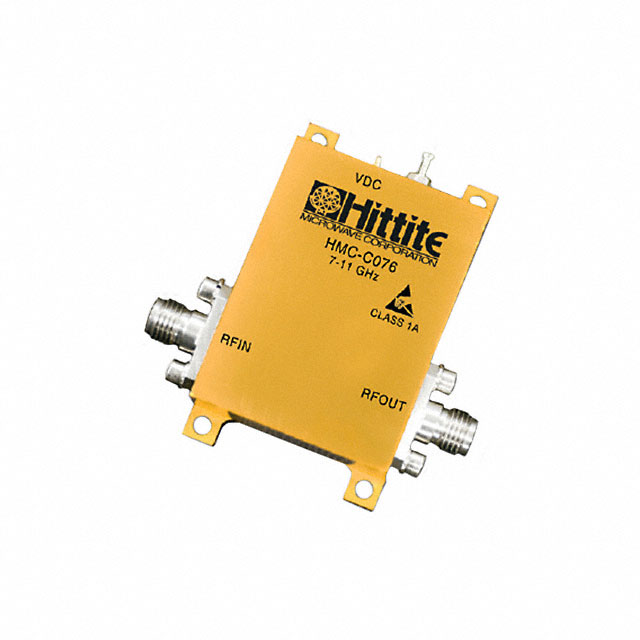

The HMC-C076 is a GaAs HBT ultra-low noise amplifier housed in a miniature, hermetic module. It is engineered for operation within the 7 to 11 GHz frequency range. The device provides high dynamic range amplification suitable for demanding RF applications. This component integrates advanced semiconductor technology into a compact form factor, ensuring reliable performance in satellite communication systems.
Feature Summary
- Utilizes GaAs HBT technology for superior signal integrity
- Encased in a miniature hermetic module for environmental protection
- Designed for ultra-low noise amplification in high-frequency bands
Applications
- VSAT systems
- DBS applications
- Satellite communication uplinks
Procurement Notes
Verify the specific manufacturer part number against official Analog Devices documentation before procurement. Confirm that the hermetic module package matches system requirements. Ensure compatibility with operating frequencies between 7 and 11 GHz. Check for any recent product change notices or obsolescence alerts directly from the manufacturer's official channels prior to ordering.
Selection Notes
Select this component when a hermetically sealed, low-noise solution is required for the 7-11 GHz band. Consider the miniature module size for space-constrained designs. Evaluate the GaAs HBT technology benefits for noise performance. Ensure the application environment supports hermetic packaging requirements and does not necessitate surface-mount alternatives.
Part Context
This module belongs to the family of GaAs HBT ultra-low noise amplifiers produced by Analog Devices. It serves as a specialized RF component for satellite communications. The design emphasizes reliability and signal purity in high-frequency operations. It represents a mature technology solution for VSAT and DBS infrastructure.
Replacement Considerations
HMC-C079 is an officially documented alternative offering similar ultra-low noise amplification but operates in the 3 to 8 GHz range. Verify frequency compatibility before substitution.
