HMC-C582

Overview

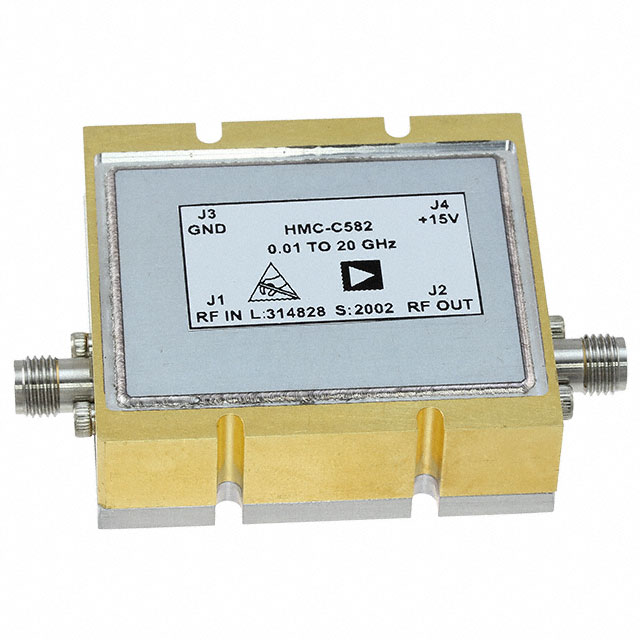

The HMC-C582 is a gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) pseudomorphic high electron mobility transistor (pHEMT) power amplifier. It operates within an ultra-wide frequency range of 0.01 GHz to 20 GHz. The device is housed in a miniature sealed module with an integrated replaceable SMA connector, specifically the ML-4-1 package configuration. This design facilitates direct interface integration into RF systems without requiring additional discrete connector assembly.

Feature Summary

• Ultra-wideband operation spanning from DC to 20 GHz
• Integrated replaceable SMA connector for simplified system interfacing
• Miniature sealed module construction ensuring environmental protection

Applications

• Test and measurement instrumentation
• Electronic warfare systems
• Broadband communication infrastructure

Procurement Notes

Verify component authenticity through authorized Analog Devices channels or certified distributors. Confirm that the specific revision matches the required datasheet version for your application. Ensure handling procedures comply with electrostatic discharge protocols appropriate for MMIC devices. Check for any regional export control classifications such as ECCN codes before finalizing procurement logistics.

Selection Notes

Select this component when an ultra-wideband power amplification solution is required across the entire spectrum up to 20 GHz. The integrated connector reduces board space and assembly complexity compared to bare die solutions. Consider the thermal management requirements associated with pHEMT technology at higher frequencies. Evaluate if the module form factor aligns with the mechanical constraints of the target enclosure.

Part Context

This part belongs to the HMC-C series of wideband MMIC modules from Analog Devices. These components are designed to provide high performance in compact forms. The C-series typically integrates active circuits with passive interconnects to simplify deployment in high-frequency applications where parasitic effects must be minimized.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacements should be verified against specific electrical parameters and pinout compatibility using official Analog Devices cross-reference tools.
