Product Detailed Parameters
- Description：IC CROSSPOINT SW EQALIZER 168BGA
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tray
- Function：Crosspoint Switch
- Frequency：-
- RF Type：-
- Secondary Attributes：-
- Mounting Type：Surface Mount
- Package / Case：169-LBGA
- Supplier Device Package：169-BGA (14x14)
- Grade：-
- Qualification：-
Download product information
Overview

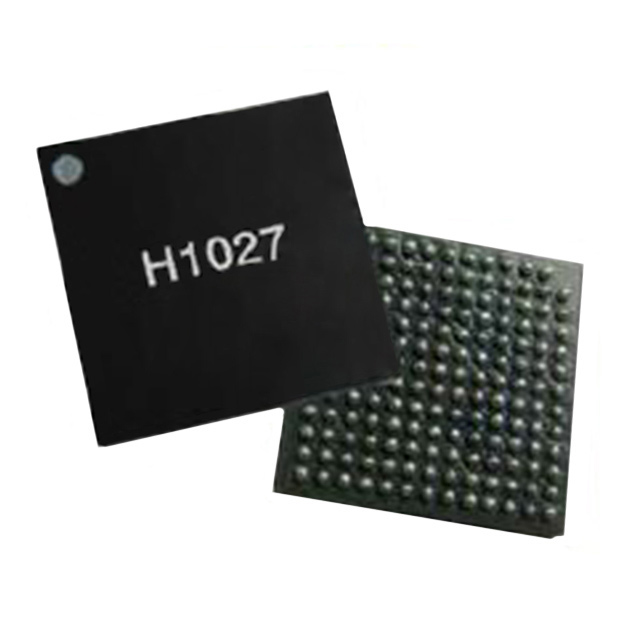

The HMC1027BG is a high-speed digital crosspoint switch manufactured by Analog Devices Inc. It features a 13x13 matrix configuration, supporting data rates up to 14.2 Gbps per channel. The device integrates equalization capabilities to maintain signal integrity across long traces or lossy interconnects. Packaged in a 169-pin BGA (14x14 mm) footprint, it is designed for asynchronous switching applications requiring low insertion loss and high port-to-port isolation.
Feature Summary
- Supports 13x13 asynchronous crosspoint switching architecture
- Integrates programmable equalization for signal restoration
- Operates at data rates up to 14.2 Gbps
- Utilizes a compact 169-pin BGA package
Applications
- High-speed serial communication backplanes
- Data center interconnects and server I/O expansion
- Telecommunications infrastructure routing
- Test and measurement equipment signal routing
Procurement Notes
Verify the specific package marking and date code against the official Analog Devices datasheet to ensure authenticity. Confirm that the supplier provides traceability documentation. Check for any specific handling requirements related to the BGA package during procurement and storage.
Selection Notes
Select this component when a 13x13 switching matrix is required with integrated equalization. Ensure the system design supports the 169-pin BGA footprint and thermal dissipation needs. Verify compatibility with the target data rate of 14.2 Gbps and power supply requirements before integration.
Part Context
The HMC1027BG belongs to Analog Devices' portfolio of high-performance RF and microwave components. It is part of the HMC series, which focuses on providing robust solutions for signal routing and processing in demanding electronic environments, particularly where high bandwidth and reliability are critical.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Consult Analog Devices application notes for potential pin-compatible or functionally equivalent alternatives within the same product family if availability is an issue.
