HMC361S8GE

Overview

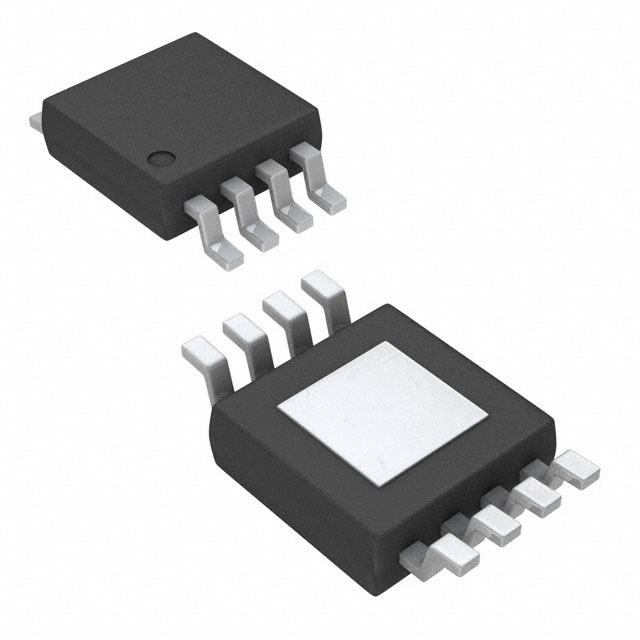

The HMC361S8GE is a low noise Divide-by-2 Static Divider utilizing InGaP GaAs HBT technology in an 8-lead surface mount plastic package. It operates from DC to 10 GHz with a divide ratio of 2. The device requires a supply voltage between 4.75 V and 5.25 V, drawing 83 mA. It delivers an output power of 3 dBm and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Implements InGaP GaAs HBT technology for low noise performance
• Provides static divide-by-2 frequency division functionality
• Supports square wave input signals starting from DC

Applications

• Frequency synthesis systems
• Phase-locked loop (PLL) circuits
• RF signal processing chains

Procurement Notes

Verify the specific suffix 'S8GE' against official Analog Devices documentation to confirm pinout and electrical specifications. Ensure compatibility with DC-to-10 GHz operational requirements. Confirm RoHS compliance status through current manufacturer datasheets before integration into final designs.

Selection Notes

Select this component when a divide-by-2 prescaler is required for frequencies up to 10 GHz. The InGaP GaAs HBT technology offers low noise characteristics suitable for sensitive RF applications. Verify that the 8-lead SMT package fits the board layout constraints and that the 5V supply requirement aligns with system power architecture.

Part Context

This part belongs to the HMC361G series of prescalers manufactured by Analog Devices. It is designed as a surface-mount solution for wireless and RF integrated circuit applications. The device serves as a fundamental building block for high-frequency signal generation and measurement equipment requiring precise frequency division.

Replacement Considerations

Consult official Analog Devices substitution guides for verified alternatives. Generic equivalents may not match the specific InGaP GaAs HBT performance or DC-to-10 GHz bandwidth.
