HMC365S8GTR

Overview

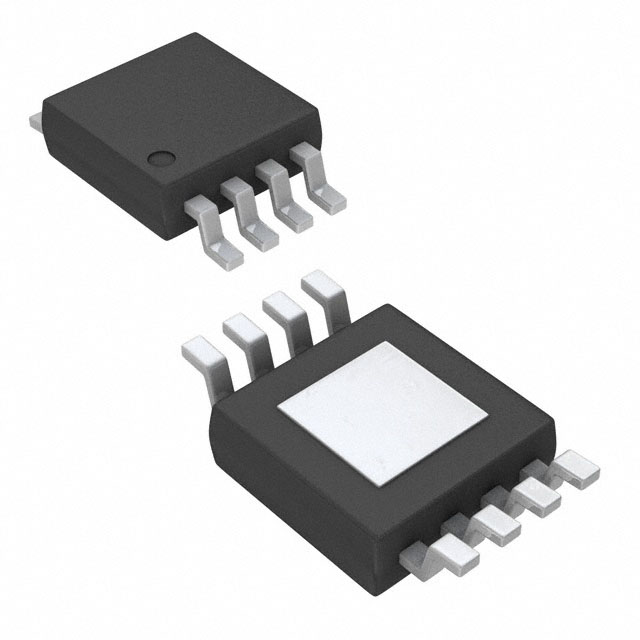

The HMC365S8GTR is a low-noise Divide-by-4 Static Divider utilizing InGaP GaAs HBT technology. It operates from DC (square wave input) to 13 GHz with a single +5V supply. The device features low additive SSB phase noise of -151 dBc/Hz and is housed in an 8-lead surface mount plastic package.

Feature Summary

• Implements divide-by-4 frequency division functionality using InGaP GaAs HBT technology
• Operates across a wide frequency range from DC to 13 GHz
• Delivers low additive SSB phase noise performance

Applications

• VSAT systems
• RF signal chain prescaling
• Wireless communication infrastructure

Procurement Notes

Verify component status as the HMC365S8GTR is listed as obsolete by Analog Devices Inc. Confirm availability through authorized distributors or approved substitute sources. Ensure compliance with RoHS3 specifications and check for any product change notifications affecting manufacturing or sourcing channels prior to procurement.

Selection Notes

Select this component for applications requiring high-frequency divide-by-4 division up to 13 GHz. Consider the 8-lead SOIC EP package for surface mount integration. Evaluate the -151 dBc/Hz phase noise specification against system requirements. Verify power supply compatibility with the required +5V DC operation.

Part Context

The HMC365S8GTR belongs to the HMC365 series of RF ICs designed for VSAT and wireless applications. It serves as a prescaler within analog devices' IoT and intelligence signal chains. The device is part of a family including variants like HMC365S8G, sharing core functional characteristics but differing in packaging or tape-and-reel configurations.

Replacement Considerations

Analog Devices Inc. lists HMC365 as an available substitute for the obsolete HMC365S8GTR. Verify pinout and electrical parameter equivalence before implementation.
