HMC8364LP6GETR

Overview

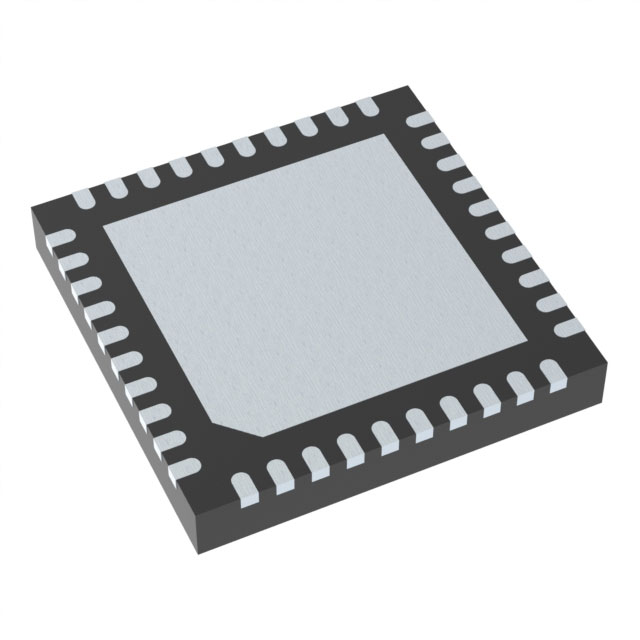

The HMC8364LP6GETR is a quad-band voltage-controlled oscillator (VCO) manufactured by Analog Devices Inc., designed for high-frequency applications. It operates within the frequency range of 18.2 GHz to 26.5 GHz, covering four distinct bands. The component utilizes a custom dual-resonant tank (DRT) architecture to achieve wide tuning coverage. It is housed in a QFN-40 surface-mount package and requires a DC supply voltage for operation. The device integrates the VCO core with necessary control interfaces, offering phase noise performance suitable for advanced RF systems.

Feature Summary

• Quad-band operation covering 18.2 GHz to 26.5 GHz using custom dual-resonant tank technology
• Integrated VCO design in a compact QFN-40 surface-mount package
• Wide tuning range capability across multiple frequency bands

Applications

• Point-to-point microwave radio links
• Satellite communication ground stations
• Electronic warfare systems
• Test and measurement equipment

Procurement Notes

Verify the specific band configuration and phase noise requirements against the official datasheet before procurement. Confirm that the QFN-40 package footprint matches the PCB layout. Ensure thermal management solutions are adequate for the operating conditions specified in the application notes. Check for any recent product discontinuance notifications from Analog Devices.

Selection Notes

Select this component when a single-chip solution is required for frequencies above 18 GHz. Consider the power consumption and supply voltage requirements relative to the system budget. Evaluate the phase noise specifications at relevant offset frequencies for the specific application. Compare the size and integration level against discrete VCO solutions to determine cost and space efficiency.

Part Context

This part belongs to the HMC836x series of VCOs from Analog Devices, which focus on high-frequency performance. The LP6 suffix indicates the lead-free and RoHS-compliant version. The GETR suffix denotes the tape and reel packaging format. This series is designed for applications requiring wide tuning ranges and low phase noise in a small form factor.

Replacement Considerations

Direct replacements may include other quad-band VCOs from Analog Devices such as the HMC8362 or HMC8364 variants, provided they meet the exact frequency and pinout requirements. Verify compatibility with existing control circuitry and thermal constraints.
