HMC895

Overview

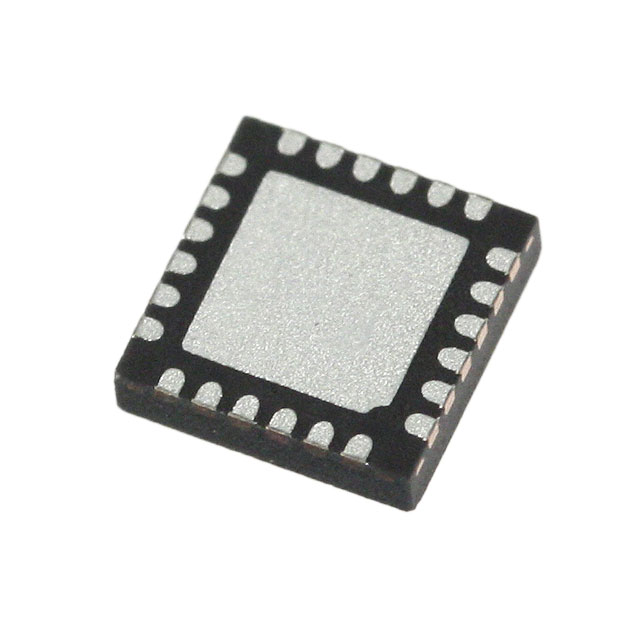

The HMC895 is a tunable active bandpass filter manufactured by Analog Devices Inc. Designed for the 8 GHz to 14 GHz frequency range, this single-channel device operates with a maximum supply voltage of 14 V. It features a cutoff frequency of 12.6 GHz and is housed in a QFN-24 surface-mount package. The component supports an operating temperature range from -40 °C to +85 °C.

Feature Summary

• Tunable bandpass filtering capability within the specified microwave frequency range
• Integrated active filter architecture for signal conditioning
• Surface-mount design suitable for automated assembly

Applications

• Microwave communication systems requiring tunable filtering
• Electronic warfare applications
• Test and measurement equipment

Procurement Notes

Verify current availability status as the HMC895LP4E variant is listed as discontinued by Analog Devices. Confirm specific ordering suffixes and lead times directly with authorized distributors or the manufacturer before procurement planning.

Selection Notes

Select this component when a tunable active bandpass filter is required for the 8-14 GHz spectrum. Ensure the system design accommodates the 14 V maximum supply voltage and the thermal requirements of the QFN-24 package within the specified operating temperature range.

Part Context

The HMC895 belongs to the HMC895 series of tunable filters from Analog Devices. It is part of the broader portfolio of RF and microwave integrated circuits previously associated with Hittite Microwave products acquired by Analog Devices.
