HMC907A

Overview

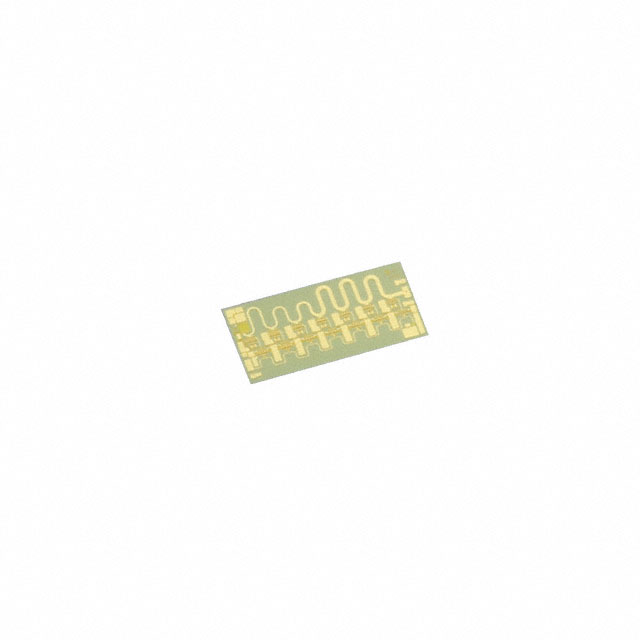

The HMC907A is a GaAs pHEMT MMIC power amplifier manufactured by Analog Devices Inc. It operates within a frequency range of 200 MHz to 22 GHz. The device provides a gain of 14 dB with a noise figure of 4 dB. It requires a supply voltage of 10 V and draws a current of 350 mA. Key performance metrics include a P1dB compression point of 28 dBm and an OIP3 of 41 dBm. The input return loss is 15 dB, and the power dissipation is 5.6 W. It functions as a single-channel RF amplifier in a Die package.

Feature Summary

• Utilizes GaAs pHEMT MMIC technology for high-frequency operation
• Provides high output power with low noise characteristics
• Designed for wideband applications across microwave frequencies

Applications

• Wireless communication systems
• Test and measurement equipment
• Military and aerospace radar systems

Procurement Notes

Verify component authenticity through authorized Analog Devices channels due to limited availability status. Confirm that the die package format aligns with specific board design requirements. Check for RoHS compliance details and ensure handling procedures account for the sensitive semiconductor nature of the bare die component.

Selection Notes

Select this component when wideband coverage up to 22 GHz is required alongside high linearity. Consider the 10 V supply requirement and thermal management needs given the 5.6 W power dissipation. Evaluate compatibility with existing RF front-end architectures requiring 14 dB gain and 41 dBm OIP3 performance levels.

Part Context

The HMC907A belongs to the HMC907 series of radio frequency amplifiers from Analog Devices. It is categorized under wireless and RF integrated circuits. This part represents a specialized solution for high-performance signal amplification in demanding environments where broad bandwidth and power efficiency are critical design constraints.

Replacement Considerations

No public confirmed substitute part numbers are available.
