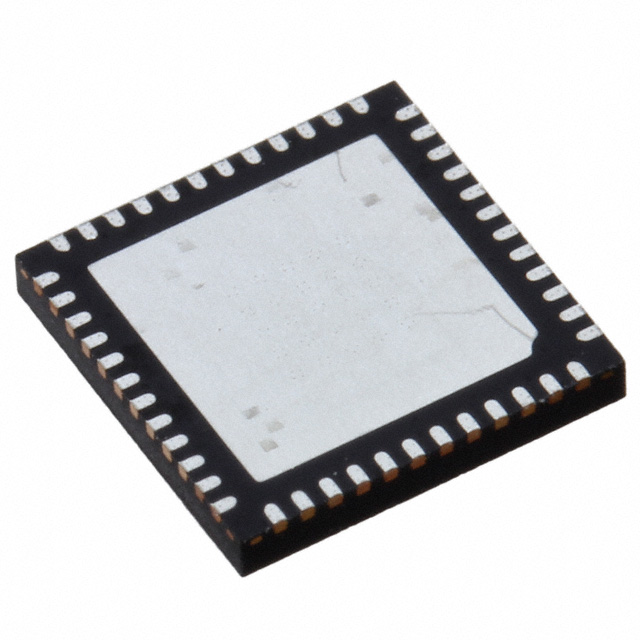

HMCAD1510

Analog To Digital Converters (ADC) Overview

The HMCAD1510 is a high-speed, multi-mode 8-bit analog-to-digital converter (ADC) utilizing time-interleaving architecture. It supports single, dual, and quad channel configurations with maximum sampling rates of 500 MSPS, 250 MSPS, and 125 MSPS, respectively. The device operates on a 1.8V supply voltage and features integrated cross-point switches for flexible input assignment. Key performance metrics include a typical Signal-to-Noise Ratio (SNR) of 49.9 dB at 500 MSPS in single-channel mode and a total power dissipation of 295 mW including I/O at the maximum sampling rate.

Analog To Digital Converters (ADC) Feature Summary

• Integrated cross-point switches allow flexible routing of four differential inputs to ADC channels across various operating modes.
• Internal digital gain control provides 1X to 50X coarse gain adjustment without missing codes up to 32X.
• Built-in low jitter programmable clock divider enables operation from a single external clock source.
• Supports independent channel power-down and deep sleep modes for significant power reduction.

Analog To Digital Converters (ADC) Applications

• USB-powered oscilloscopes
• Digital oscilloscopes
• Satellite receivers

Analog To Digital Converters (ADC) Procurement Notes

Verify the specific package variant and temperature grade against the official Analog Devices datasheet before procurement. Confirm that the serial interface timing requirements align with the host controller's capabilities. Ensure proper power sequencing during initialization to guarantee correct ADC operation.

Analog To Digital Converters (ADC) Selection Notes

Select the HMCAD1510 when a balance between high sampling speed and low power consumption is required. It is suitable for applications needing flexible input configuration via internal mux arrays. Consider pin-compatible alternatives like the HMCAD1511 or HMCAD1520 if higher resolution or different sampling rates are needed.

Analog To Digital Converters (ADC) Part Context

The HMCAD1510 belongs to the HMCAD15xx series of high-speed multi-mode ADCs from Analog Devices. It shares pin compatibility with the HMCAD1511 and HMCAD1520, facilitating design upgrades within the same family. The device is designed for easy integration with Field Programmable Gate Arrays (FPGAs).

Analog To Digital Converters (ADC) Replacement Considerations

The HMCAD1511 and HMCAD1520 are pin-compatible replacements. The HMCAD1511 offers extended sampling rates up to 1 GSPS, while the HMCAD1520 provides 14-bit resolution. Verify functional differences in gain control and sampling specifications before substitution.

Analog To Digital Converters (ADC) FAQ

How does the HMCAD1510 handle input signal routing?

It uses integrated cross-point switches (Mux Array) to allow users to select any of the four inputs for assignment to the active ADC channels in single, dual, or quad modes.

What is the startup time from power-down mode?

The startup time from Power Down Mode to Active Mode is 15 µs.

Can individual channels be powered down?

Yes, each channel can be powered down independently through the serial control interface to reduce power consumption.
