HMCAD1520TR

Analog To Digital Converters (ADC) Overview

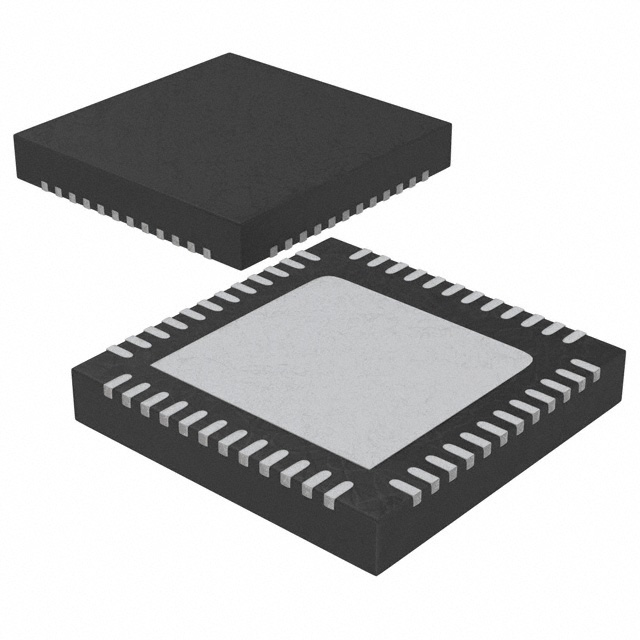

The HMCAD1520 is a high-speed, low-power analog-to-digital converter featuring four independent channels with interleaving capabilities. It supports multi-mode operation including single channel (up to 1000 Msps), dual channel (up to 640 Msps), quad channel (up to 160 Msps), and precision mode (up to 105 Msps). The device offers configurable resolutions of 8-bit, 12-bit, or 14-bit. Key electrical parameters include a signal-to-noise ratio of up to 74 dB in precision mode and 70 dB in high-speed modes. Power dissipation is rated at 490 mW for the 12-bit 640 Msps configuration. It utilizes a serial LVDS output interface and operates on a 1.8 V supply voltage within a 7 x 7 mm 48-pin QFN package.

Analog To Digital Converters (ADC) Feature Summary

• Integrated cross-point switches enable instantaneous input selection across all operational modes.
• Internal low jitter programmable clock divider allows use of a single clock source for all modes.
• Supports coarse and fine gain control with digital fine gain adjustment for each ADC channel.
• Includes internal reference circuitry requiring no external components.

Analog To Digital Converters (ADC) Applications

• Precision oscilloscopes
• Spectrum analyzers
• Diversity receivers
• High-end ultrasound systems
• Communication testing

Analog To Digital Converters (ADC) Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct packaging and temperature grade specifications. Confirm that the component meets RoHS compliance requirements relevant to your manufacturing region. Cross-reference the datasheet revision number to validate the accuracy of the technical parameters provided.

Analog To Digital Converters (ADC) Selection Notes

Select the appropriate operating mode based on the required sampling rate and resolution trade-offs. Ensure the system clock frequency aligns with the programmable divider settings. Verify that the power supply voltages remain within the specified 1.7 V to 3.6 V range for logic inputs and 1.8 V nominal for analog supplies.

Analog To Digital Converters (ADC) Part Context

The HMCAD1520 is part of Analog Devices' high-speed data converter portfolio. It is pin-compatible with the HMCAD1511 and HMCAD1510 models, allowing for functional substitution while offering enhanced flexibility through its multi-mode architecture and integrated cross-point switching capabilities.

Analog To Digital Converters (ADC) Replacement Considerations

The HMCAD1520 is pin compatible with the HMCAD1511 and HMCAD1510. Designers can configure the HMCAD1520 to operate with functionality matching these parts as described in their respective datasheets.
