HMD0158N

Overview

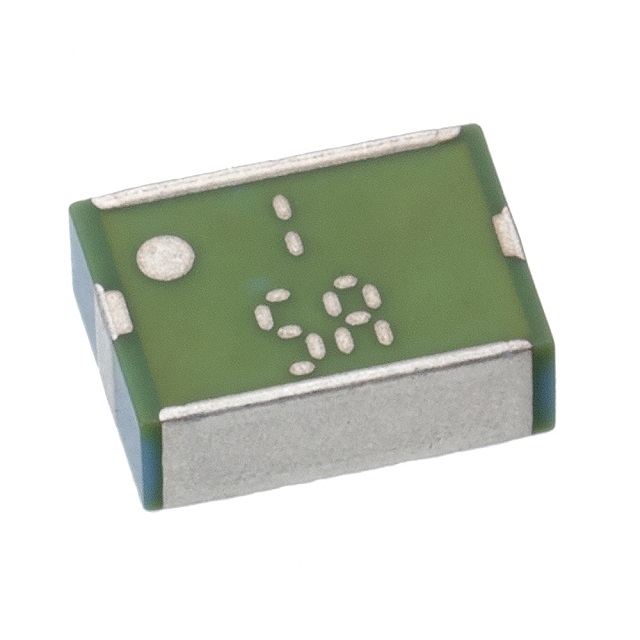

The HMD0158N is an LTCC band pass filter manufactured by Soshin Electric Co., Ltd. It is designed for RF applications with a center frequency of 5170 MHz. The component utilizes Low Temperature Co-fired Ceramic technology to provide stable filtering characteristics in a compact surface-mount package.

Feature Summary

• LTCC construction for high reliability
• Band pass filtering capability
• Surface mount design

Applications

• RF front-end modules
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version, as some sources indicate tentative specifications under development. Confirm impedance matching requirements and land pattern dimensions against your PCB layout. Ensure compatibility with reflow soldering profiles specified by the manufacturer for LTCC components.

Selection Notes

Select this component when a band pass filter centered at 5170 MHz is required. Consider the LTCC package type for size constraints. Verify insertion loss and rejection specs against system requirements using the official electrical parameters table.

Part Context

Soshin Electric specializes in RF/IF filters, couplers, and EMI filters. The HMD0158N belongs to their LTCC filter portfolio, leveraging ceramic materials for high-frequency performance and thermal stability in consumer and industrial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference options based on specific electrical performance criteria.
