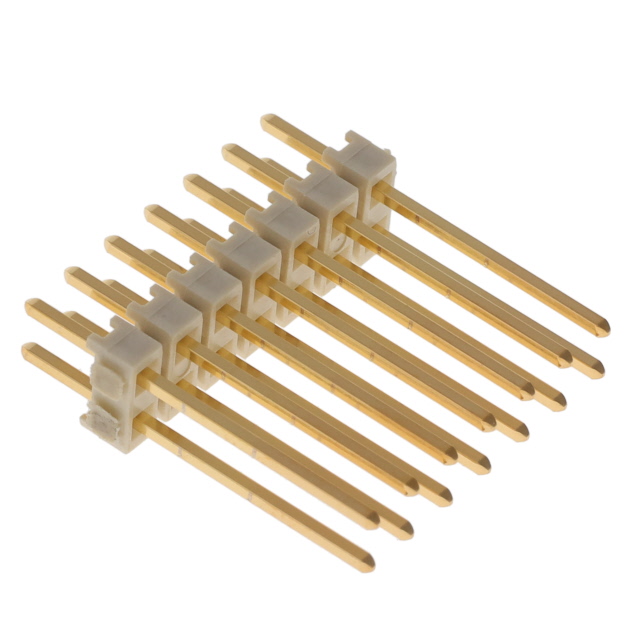

HMTSW-101-23-T-D-255

Headers, Male Pins Overview

The HMTSW-101-23-T-D-255 is a Flex Stack variable height PCB header strip manufactured by Samtec. It features a 0.100 inch (2.54 mm) pitch with two rows and twenty-three positions per row. The connector utilizes through-hole termination with solder pins and offers a straight mounting style. Mating contact length is specified at 0.255 inches (6.48 mm), while the post length measures 0.120 inches (3.05 mm). The total contact length is 0.480 inches (12.19 mm). Insulation material is polyester, rated UL 94 V-0, with black coloration. Operating temperature ranges from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Flex Stack design allows modified post height and body position in 0.005 inch increments
• Suitable for most high-temperature board processing applications
• Available as an Automotive A-Series product

Headers, Male Pins Applications

• Board-to-Board interconnection
• Cable connections
• High-temperature board processing environments

Headers, Male Pins Procurement Notes

Verify the specific tin plating configuration against application requirements, as gold variants exist within the series. Confirm insulation material specifications, noting that some datasheets list polyester while others indicate LCP for similar part numbers. Ensure compatibility with mating connectors using .025 inch square posts. Check RoHS compliance status and moisture sensitivity levels prior to assembly planning.

Headers, Male Pins Selection Notes

Select this component when variable height adjustment is required for precise board spacing. The two-row configuration supports higher density connections compared to single-row alternatives. Consider the straight orientation for standard vertical mounting. Evaluate thermal resistance capabilities if operating near the upper temperature limit of 125°C.

Headers, Male Pins Part Context

This part belongs to the HMTSW series, representing high-temperature variable post height terminal strips. It is a variation of the classic TSW header strip, offering fourteen terminal length choices. The series is designed to satisfy virtually any application with standard pricing and delivery options, providing flexibility in post height modification.

Headers, Male Pins Replacement Considerations

HMTSW-101-23-G-D-255

Headers, Male Pins FAQ

What is the mating contact length for this connector?

The mating contact length is 0.255 inches (6.48 mm).

Is this connector suitable for automotive applications?

Yes, the HMTSW series is available as an Automotive A-Series product.
