HP0805H2700ASTR

Overview

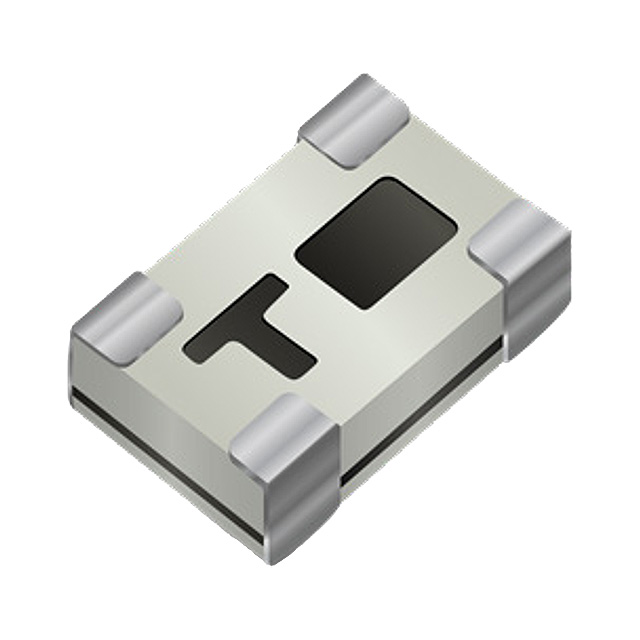

The HP0805H2700ASTR is a high-pass thin-film RF filter manufactured by KYOCERA AVX. It operates with a cutoff frequency of 2700 MHz and maintains a system impedance of 50 Ohms. Designed for surface-mount technology, the component utilizes an 0805 (2012 metric) package with four pad contacts. It supports board mounting and functions within a temperature range of -40°C to +85°C. The device handles up to 3 Watts of power and exhibits an insertion loss of -1.1 dB. Packaging options include reel, cut tape, and MouseReel formats.

Feature Summary

• Thin-film construction for stable signal conditioning
• High-power handling capability for robust operation
• Space-qualified reliability for critical applications

Applications

• Space communication systems
• RF signal conditioning circuits
• High-frequency filtering in satellite equipment

Procurement Notes

Verify the specific ordering suffix and packaging configuration against official KYOCERA AVX documentation before purchase. Confirm that the selected variant meets all environmental and electrical requirements for the intended application. Ensure compatibility with existing supply chain protocols and quality standards.

Selection Notes

Select this component when a high-pass filter with a 2700 MHz cutoff is required in an 0805 footprint. Consider the 3W power rating and -1.1 dB insertion loss for circuit design. Verify space qualification needs and operating temperature limits against project specifications.

Part Context

This part belongs to the HP series of thin-film high-pass filters from KYOCERA AVX. These components are engineered for high-performance RF applications requiring precise frequency discrimination. The series offers various cutoff frequencies while maintaining consistent impedance and package dimensions for design flexibility.

Replacement Considerations

HP0805H2800ASTR serves as a similar high-pass filter option with a 2800 MHz cutoff frequency. Both parts share the same manufacturer, package type, and general series characteristics.
