HP1-P25

Power Line Filter Modules Overview

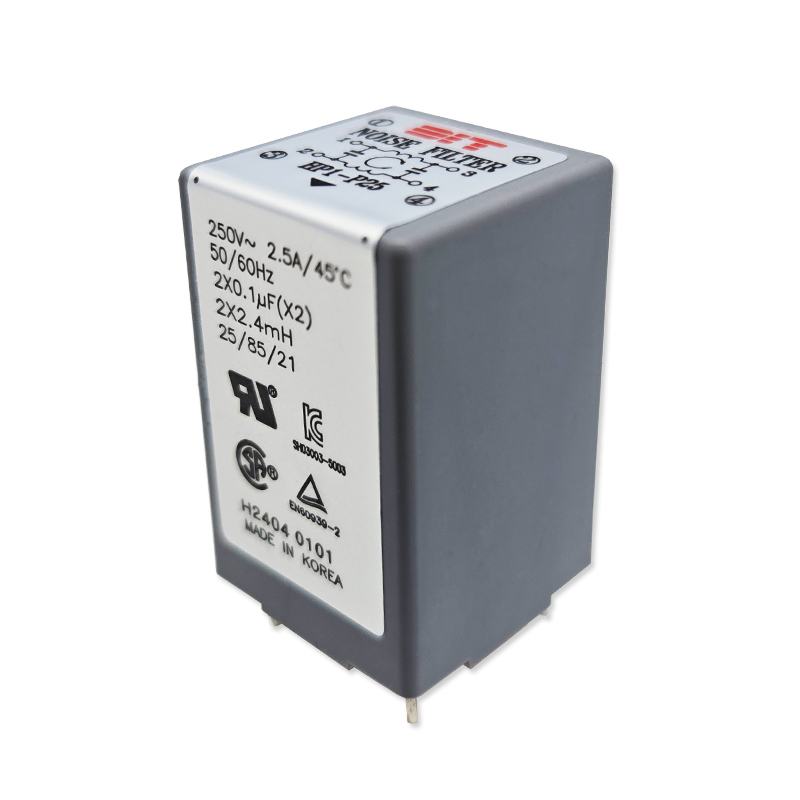

The DIT HP1-P25 is a single-phase EMC/EMI line filter module designed for power line noise suppression. It features a 2.5 A current rating and operates at 250VAC/VDC within 50/60Hz frequency ranges. The component utilizes a single-stage filtering architecture with through-hole PC pin termination, ensuring reliable integration into standard printed circuit board layouts for electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Single-phase EMC/EMI line filtering capability
• Through-hole PC pin termination for PCB mounting
• Single-stage filtering architecture

Power Line Filter Modules Applications

• Power supply input stages
• Electronic equipment requiring EMI suppression
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical dimensions before finalizing design integration. Confirm that the 2.5A rating and 250VAC/VDC specifications align with your system requirements. Ensure compatibility with the intended PCB layout and mounting constraints. Cross-reference part numbers to avoid confusion with similar series components.

Power Line Filter Modules Selection Notes

Select this component when single-phase EMI filtering is required for circuits operating up to 2.5A and 250VAC. The through-hole pin configuration suits standard PCB assembly processes. Evaluate the single-stage performance against specific noise attenuation needs. Ensure the physical footprint matches available board space and that thermal conditions remain within operational limits during continuous use.

Power Line Filter Modules Part Context

This component belongs to the DIT line filter series, focusing on electromagnetic compatibility solutions. It addresses common mode and differential mode noise in AC power lines. The design prioritizes straightforward installation via through-hole pins while maintaining effective signal integrity protection for sensitive electronic loads in noisy environments.

Power Line Filter Modules Replacement Considerations

Consult official DIT documentation or authorized distributors for verified substitute part numbers. Do not assume cross-compatibility with generic filters without verifying electrical ratings and mounting configurations.
