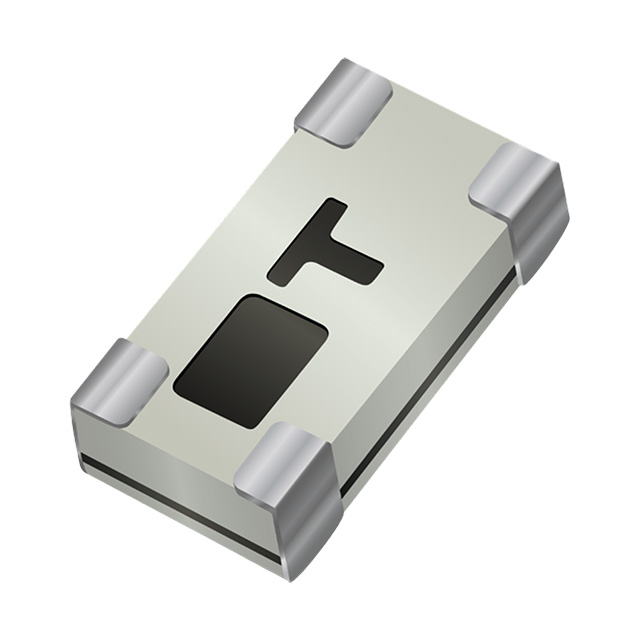

HP1206A1000ASTR500

$7.77

Description：RF FILTER HIGH PASS 1206
Series：HP1206
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d44b538d148b Category: RF Filters Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER HIGH PASS 1206
Series：HP1206
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：1GHz
Bandwidth：-
Filter Type：High Pass
Ripple：-
Insertion Loss：-1.2dB
Mounting Type：Surface Mount
Package / Case：1206 (3216 Metric), 4 PC Pad
Size / Dimension：0.121" L x 0.063" W (3.08mm x 1.60mm)
Height (Max)：0.034" (0.87mm)

Download product information

HP1206A1000ASTR500

Overview

The HP1206A1000ASTR500 is a high-pass RF filter manufactured by KYOCERA AVX, designed for surface-mount applications in the 1206 (3216 metric) package. It features a cutoff frequency of 1.0 GHz and operates within a temperature range of -40°C to +85°C. The component utilizes thin-film multilayer technology to achieve low insertion loss and high power handling capabilities. It is supplied in tape and reel packaging with a standard quantity of 500 units per reel.

Feature Summary

Utilizes thin-film multilayer technology for superior high-frequency performance
Provides high power handling capability suitable for demanding RF environments
Offers low insertion loss to maintain signal integrity
Designed for compact surface-mount integration

Applications

Wireless communication systems
RF front-end modules
Test and measurement equipment
Base station transceivers

Procurement Notes

Verify the specific suffix '500' indicates the standard tape and reel packaging quantity of 500 units. Confirm the operating temperature range and impedance matching requirements align with the target circuit design. Ensure compatibility with standard reflow soldering profiles for 1206 packages.

Selection Notes

Select this component when a high-pass filter with a 1.0 GHz cutoff is required in a compact form factor. Consider its thin-film construction for applications needing stable performance across wide bandwidths. Evaluate power handling specifications against the expected signal levels in the RF path.

Part Context

This part belongs to the HP1206 series of high-pass filters from KYOCERA AVX. The series is characterized by its use of advanced thin-film deposition techniques on ceramic substrates, providing consistent electrical characteristics and reliability for high-frequency signal conditioning tasks.

Replacement Considerations

Check for direct substitutes within the same series or other manufacturers offering similar 1.0 GHz high-pass filters in 1206 packages. Verify that alternative components match the insertion loss, power handling, and physical dimensions before substitution.
