HP2816A1000SNTR

Overview

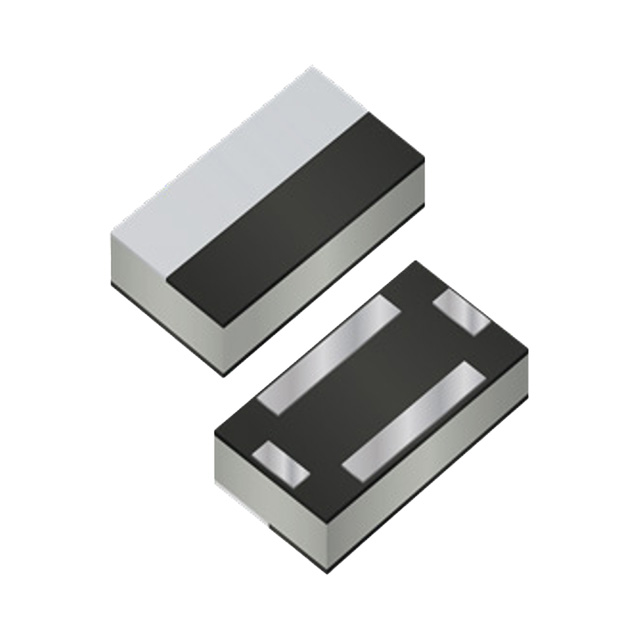

The HP2816A1000SNTR is a high-pass thin-film RF filter manufactured by Kyocera AVX. It operates at a cutoff frequency of 1000 MHz with a characteristic impedance of 50 ohms. The component supports a power handling capacity of 15W and features a compact surface-mount package measuring 7x4x1.2 mm. Designed for robust performance, it functions within an operating temperature range of -40°C to +85°C.

Feature Summary

• Thin-film construction ensures steep attenuation characteristics for effective signal filtering.
• Compact 7x4x1.2 mm surface-mount footprint facilitates integration into space-constrained designs.
• High power handling capability of 15W suitable for demanding RF applications.

Applications

• RF signal conditioning in communication systems
• High-frequency filtering in wireless infrastructure
• Signal integrity management in microwave circuits

Procurement Notes

Verify the specific suffix SNTR indicates reel packaging when sourcing. Confirm the manufacturer part number matches exactly to ensure correct cutoff frequency and power ratings. Check regional availability as distribution status may vary. Ensure compatibility with 50-ohm system impedance requirements before procurement.

Selection Notes

Select this component for applications requiring a 1 GHz high-pass response with significant power handling. The thin-film technology offers superior stability compared to discrete alternatives. Consider the small form factor for dense PCB layouts. Verify thermal management capabilities align with the -40°C to +85°C operational range.

Part Context

This part belongs to the HP2816 series of thin-film RF filters from Kyocera AVX. The series utilizes advanced thin-film deposition techniques to achieve precise frequency responses. These filters are engineered for reliability in harsh environments, combining high Q-factor performance with mechanical durability for industrial and commercial use.

Replacement Considerations

Direct substitutes must match the 1000 MHz cutoff, 50-ohm impedance, and 15W power rating. Verify package dimensions (7x4x1.2mm) for board compatibility. Alternative high-pass filters from other manufacturers require electrical parameter validation to ensure equivalent attenuation slopes and thermal performance.
