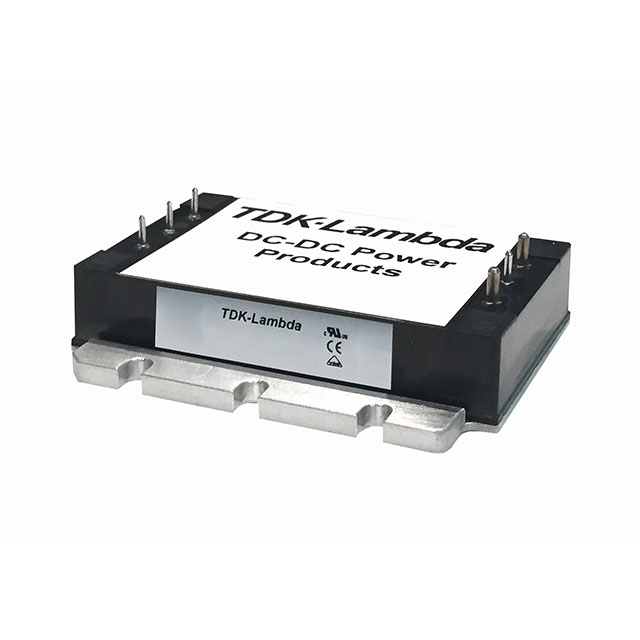

HQA2W120W120V-007-S

HQA2W120W120V-007-S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 12V 120W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HQA2W120W120V-007-S

• Description：DC DC CONVERTER 12V 120W
• Series：HQA120 (120W)
• Mfr：TDK-Lambda
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：40V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：120 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP
• Operating Temperature：-40°C ~ 115°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.39" L x 2.20" W x 0.50" H (60.6mm x 55.9mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for HQA2W120W120V-007-S
