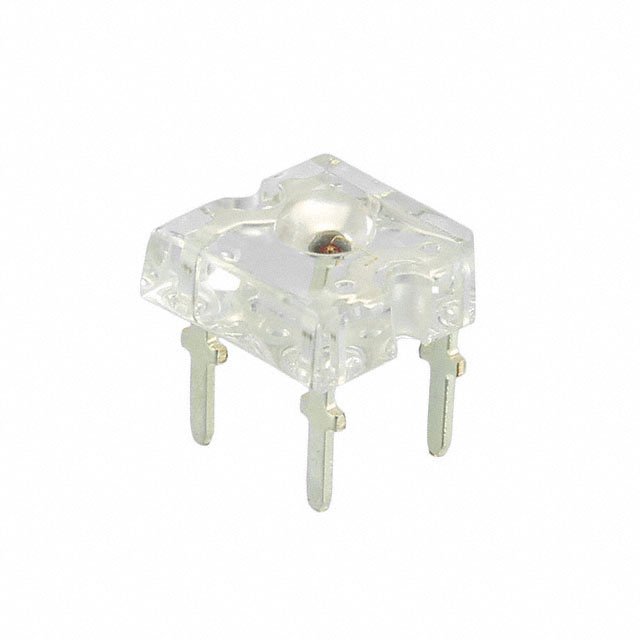

HR335-JK-1,2-3,4,5,6,7

$0.11

Description：LED RED 4DIP T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tube

SKU:ef92f23241db Category: LED Indication - Discrete Brand: Seoul Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HR335-JK-1,2-3,4,5,6,7 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Seoul Semiconductor Inc.. Its product description is LED RED 4DIP T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for HR335-JK-1,2-3,4,5,6,7

Description：LED RED 4DIP T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tube
Color：Red
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：3000mcd
Lens Style：Round with Domed Top
Lens Size：3mm, T-1
Voltage - Forward (Vf) (Typ)：2.6V
Current - Test：70mA
Viewing Angle：110°
Mounting Type：Through Hole
Wavelength - Dominant：625nm
Wavelength - Peak：-
Features：-
Package / Case：4-DIP (0.200", 5.08mm)
Supplier Device Package：4-DIP
Size / Dimension：7.62mm L x 7.62mm W
Height (Max)：5.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for HR335-JK-1,2-3,4,5,6,7

HR335-JK-1,2-3,4,5,6,7

LED Indication - Discrete Overview

The HR335-JK-1,2-3,4-5-6-7 is a red LED indicator from Seoul Semiconductor Inc., housed in a DIP-4 package. It features a standard configuration with a round lens and domed top. The component emits bright red light with a millicandela rating of 3000mcd. Typical forward voltage is 2.6V. Designed for exterior and architectural lighting applications, it offers a long lifespan.

LED Indication - Discrete Feature Summary

Bright red emission suitable for high visibility
Long operational lifespan for durable performance
Standard through-hole mounting configuration

LED Indication - Discrete Applications

Exterior lighting systems
Architectural lighting designs
General indication purposes

LED Indication - Discrete Procurement Notes

Verify the specific suffix variant required (1 through 7) as these denote distinct part numbers within the series. Confirm DIP-4 package compatibility with your PCB layout. Ensure thermal management aligns with the 2.6V typical forward voltage specification. Check manufacturer datasheets for exact binning requirements to match brightness levels.

LED Indication - Discrete Selection Notes

Select this component when high-intensity red indication is needed for outdoor or architectural environments. The 3mm T-1 lens style provides effective light distribution. Consider the long lifespan benefit for maintenance-heavy installations. Verify that the standard configuration meets your visual signaling requirements without needing complex optics.

LED Indication - Discrete Part Context

This part belongs to Seoul Semiconductor's SemiKey line of discrete LEDs. It is designed for robust performance in demanding lighting applications. The product line emphasizes strong IP power and market leadership in optical solutions. It supports various display and lighting needs globally.
