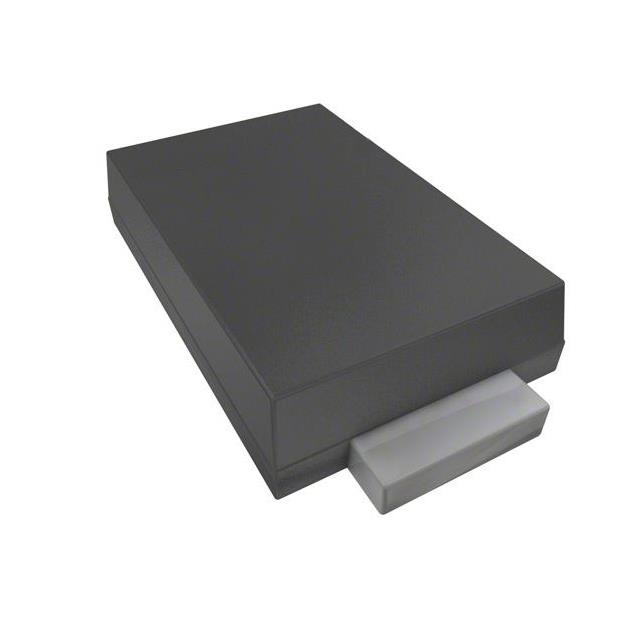

HS1KF-T is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE STANDARD 800V 1A SMAF. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for HS1KF-T
- Description：DIODE STANDARD 800V 1A SMAF
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：75 ns
- Current - Reverse Leakage @ Vr：5 µA @ 800 V
- Capacitance @ Vr, F：8pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-221AC, SMA Flat Leads
- Supplier Device Package：SMAF
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for HS1KF-T
Single Diodes Overview
The HS1KF-T is a high-efficiency fast recovery rectifier diode manufactured by Taiwan Semiconductor Corporation. It features an 800V reverse voltage rating and a 1A average forward current. The device utilizes a glass passivated chip junction for reliability. It is housed in a DO-221AC (SMA Flat Leads) surface mount package, measuring 4.6mm in length, 2.83mm in width, and 2.3mm in height. The component operates within a temperature range of -55°C to +150°C junction temperature.
Single Diodes Feature Summary
- Glass passivated chip junction for enhanced reliability
- Fast switching characteristics designed for high efficiency
- Low forward voltage drop to minimize power loss
- Ideal for automated placement processes
Single Diodes Applications
- High frequency switching power supplies
- Free wheeling diodes in DC-DC converters
- General purpose rectification in surface mount circuits
Single Diodes Procurement Notes
Verify the specific suffix 'T' indicates tape and reel packaging when sourcing. Confirm the DO-221AC package variant matches the SMA Flat Leads requirement for PCB footprint compatibility. Ensure RoHS compliance documentation aligns with Directive 2011/65/EU standards for the intended market.
Single Diodes Selection Notes
Select this component for applications requiring 800V blocking capability in a compact surface mount form factor. The fast recovery特性 makes it suitable for higher frequency operations compared to standard rectifiers. Consider the thermal management requirements given the small SMA package size and 1A current rating.
Single Diodes Part Context
This part belongs to the HS1 series of high-efficient surface mount rectifiers from Taiwan Semiconductor. The series covers voltage ratings from 50V to 1000V. The HS1KF-T specifically addresses the 800V segment, offering a balance of speed and current handling in the DO-221AC package family.
Single Diodes Replacement Considerations
HS1KAL is listed as a parametric equivalent substitute. Verify pinout and electrical specifications match before substitution.
