HSDH161608SS

Overview

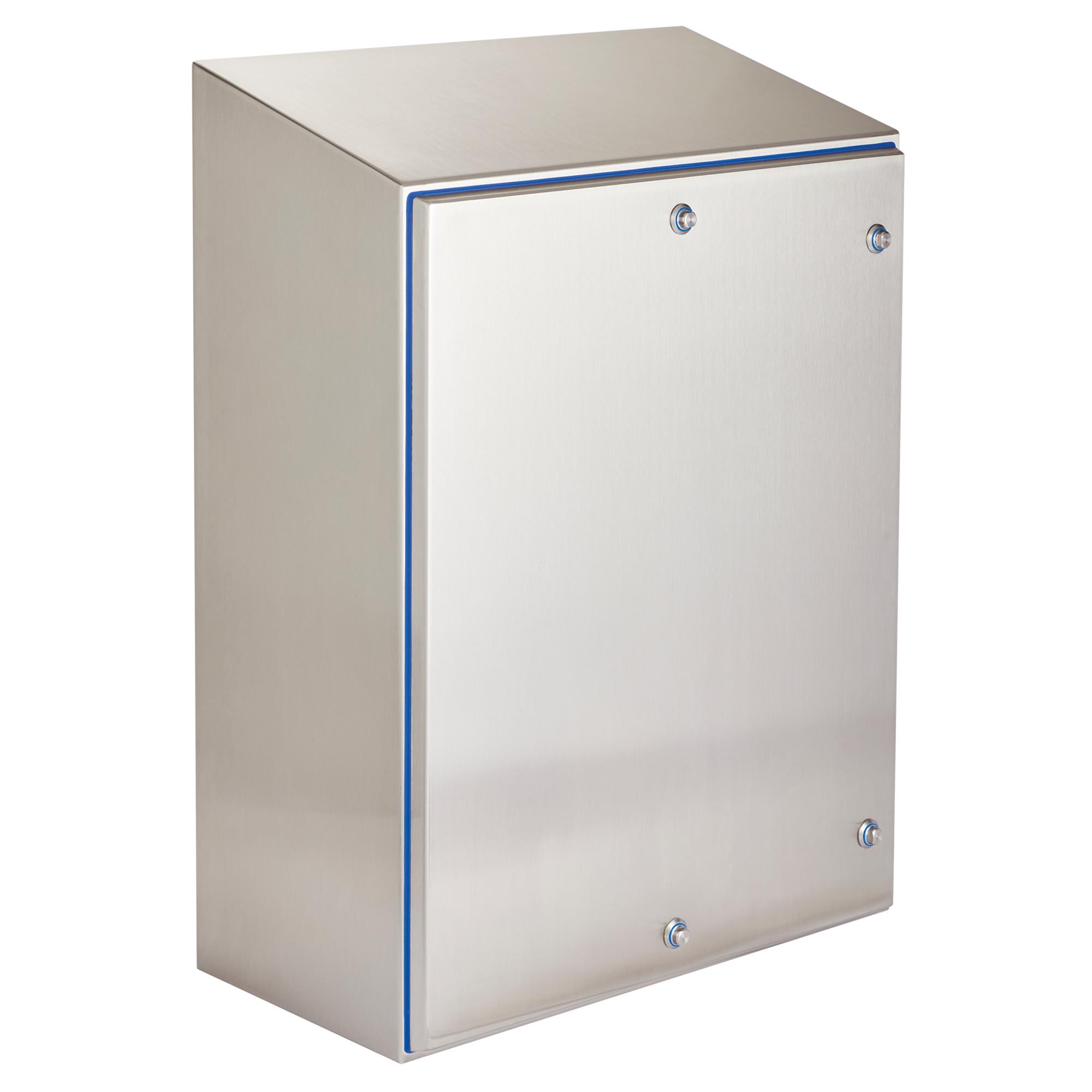

The Hoffman Enclosures Inc. HSDH161608SS is a HyShed hinged cover enclosure constructed from 14-gauge Type 304 stainless steel with a #4 Dairy finish. It measures 16 inches in length, 16 inches in width, and 8 inches in depth. The unit features a 15-degree sloped top to prevent fluid pooling and maximize back panel space. It provides NEMA 4/4X/12 and IP66/IP69K protection ratings, making it suitable for high-pressure washdown environments. The enclosure includes a gasketed door and is designed for wall mounting.

Feature Summary

• Engineered to withstand high pressure and high temperature sanitary washdown cleaning procedures
• Features a 15-degree sloped top design to facilitate runoff of water and cleaning solutions
• Constructed from 14-gauge Type 304 stainless steel with a #4 Dairy finish
• Provides NEMA 4/4X/12 and IP66/IP69K ingress protection ratings

Applications

• Food and Beverage processing facilities requiring sanitary washdown compliance
• Industrial environments subject to high-pressure cleaning procedures
• Wall-mounted control housing where fluid runoff prevention is critical
• Applications requiring corrosion-resistant stainless steel construction

Procurement Notes

Verify the specific model suffix matches the required depth and material grade. Confirm that the #4 Dairy finish meets your facility's sanitation standards. Ensure wall mounting hardware is compatible with the enclosure's weight and dimensions. Check for any regional certification requirements such as UL or CSA before finalizing procurement.

Selection Notes

Select this model when 16x16x8 internal volume is required for 304 stainless steel applications. Consider the 15-degree slope if fluid accumulation on the top surface is a concern. Verify that the gasketed hinge cover design aligns with your access frequency needs. Compare against non-sanitary rated enclosures if washdown exposure is not present.

Part Context

This component belongs to the Hoffman HyShed series, which is specifically engineered for sanitary environments. The series emphasizes fluid management through its unique sloped top design. It is part of Hoffman's broader lineup of industrial enclosures designed for harsh conditions, particularly those involving frequent cleaning protocols.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting structures and cable entries when considering alternative models.
