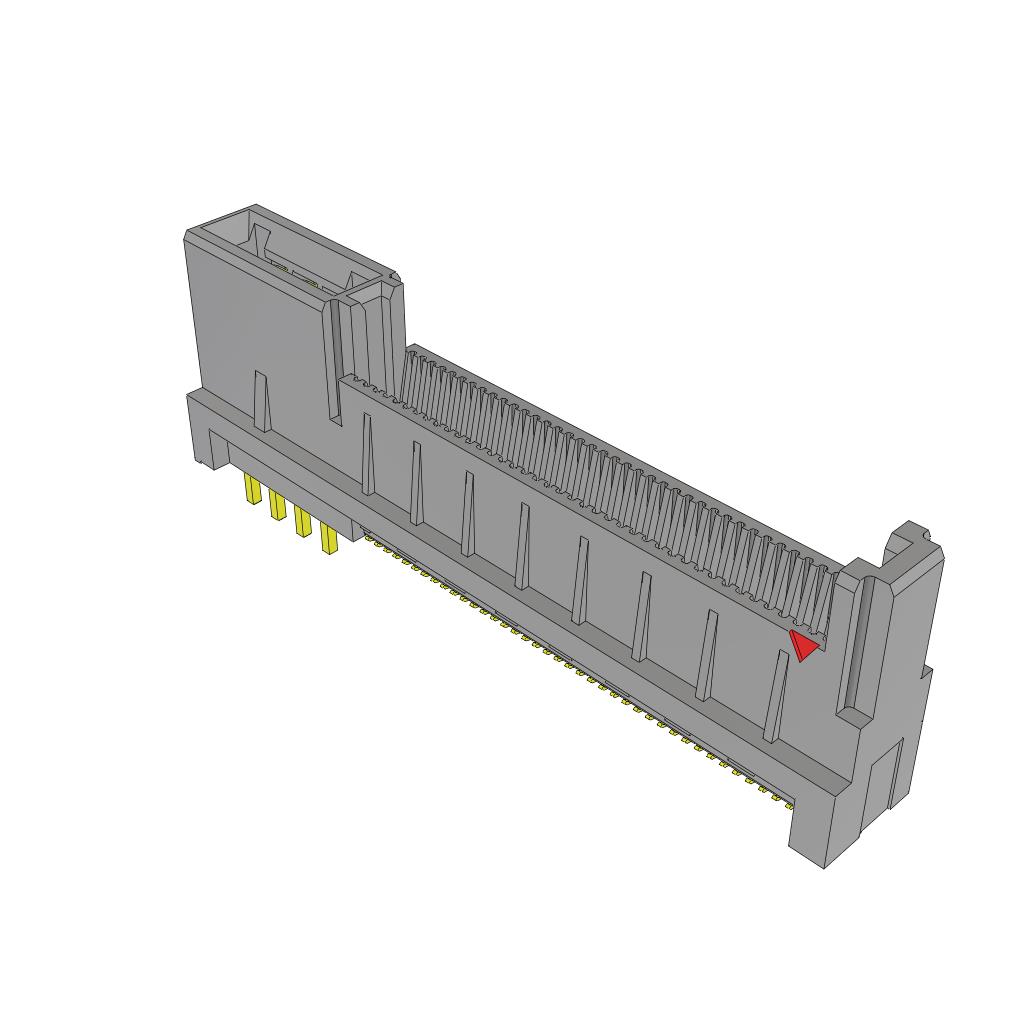

HSEC8-140-01-L-PV-2-2

Edgeboard Connectors Overview

The HSEC8-140-01-L-PV-2-2 is a high-speed power and signal combo edge card connector from the Samtec HSEC8 series. It features a 0.80 mm pitch with 42 positions arranged in two rows. The connector utilizes gold-plated phosphor bronze contacts housed in liquid crystal polymer (LCP). It supports current ratings of 3.2 A and 27.5 A, operating within a temperature range of -55°C to +125°C.

Edgeboard Connectors Feature Summary

• Combines high-speed signal transmission with power delivery capabilities
• Utilizes Edge Rate contact system for reliable connection
• Designed for demanding applications requiring robust performance

Edgeboard Connectors Applications

• High-speed data communication systems
• Industrial control modules
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct pinout and mechanical configuration. Confirm material specifications such as contact plating and insulation type match project requirements. Check RoHS compliance status and moisture sensitivity levels before procurement.

Edgeboard Connectors Selection Notes

Select this component when a 0.80 mm pitch is required for mixed signal and power applications. Consider the dual-row configuration and straight mounting style for board integration. Ensure the LCP housing and gold contacts meet environmental and electrical standards.

Edgeboard Connectors Part Context

This part belongs to the HSEC8 series, designed for high-speed edge card connections. It integrates power and signal lines into a single compact connector solution. The series is known for its reliability in high-density electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for compatible alternatives. Verify that any substitute matches the 0.80 mm pitch, 42-position count, and dual-row layout. Ensure identical current ratings and temperature ranges are maintained.
