HSMA-A430-W90M1

LED Indication - Discrete Overview

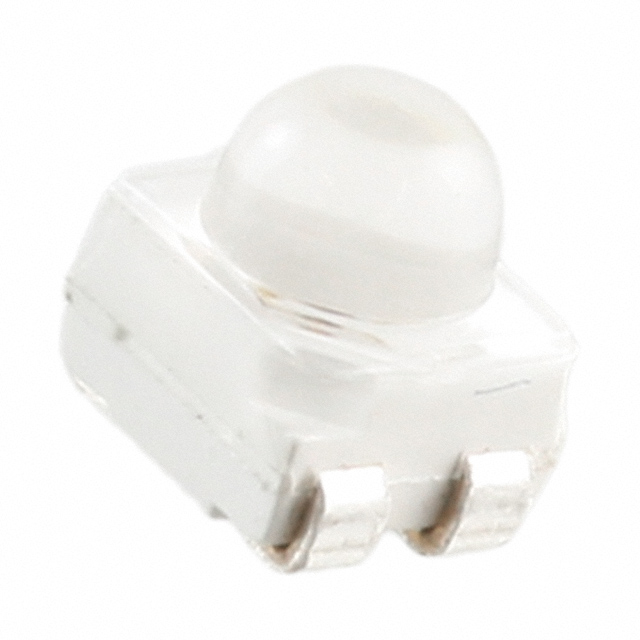

The HSMA-A430-W90M1 is a single-color amber LED from the Broadcom HSMx series, utilizing AlInGaP technology. It features a PLCC-4 surface-mount package with dimensions of 3.2 mm length, 2.8 mm width, and 3.87 mm height. The component emits light at a peak wavelength of 590 nm with a clear dome lens. Key electrical parameters include a forward voltage of 2.2 V and a rated forward current of 50 mA. It delivers an optical intensity of 3 cd and has a power rating of 180 mW. The device operates within a temperature range of -40 C to +100 C.

LED Indication - Discrete Feature Summary

• Amber illumination provided by AlInGaP semiconductor material
• Standard PLCC-4 surface mount packaging for automated assembly
• Clear dome-shaped lens design for focused light emission

LED Indication - Discrete Applications

• Panel status indicators
• Equipment front panel signaling
• General purpose electronic instrumentation

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and moisture sensitivity level (MSL) handling requirements prior to storage and reflow soldering. Ensure ordering suffixes match specific binning requirements for wavelength and intensity. Review datasheet specifications for lead-free solderability standards.

LED Indication - Discrete Selection Notes

Select this component when amber indication is required in space-constrained designs utilizing standard PLCC-4 footprints. Consider the 50 mA forward current capability and 180 mW power dissipation limits for thermal management. Evaluate the 3 cd intensity against visibility requirements. Compare against other HSMx variants if different lens shapes or colors are needed.

LED Indication - Discrete Part Context

This part belongs to the Broadcom HSMx family of surface-mount LEDs, designed for high reliability in commercial electronics. The PLCC-4 form factor allows for compact circuit board layouts while maintaining robust mechanical stability. The series supports various colors and intensities, with this specific model optimized for amber applications requiring moderate brightness.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same series include HSMA-A431-Y00M1, which shares identical physical dimensions and electrical characteristics but may differ in specific intensity binning. Verify pin compatibility and spectral output before substitution.
