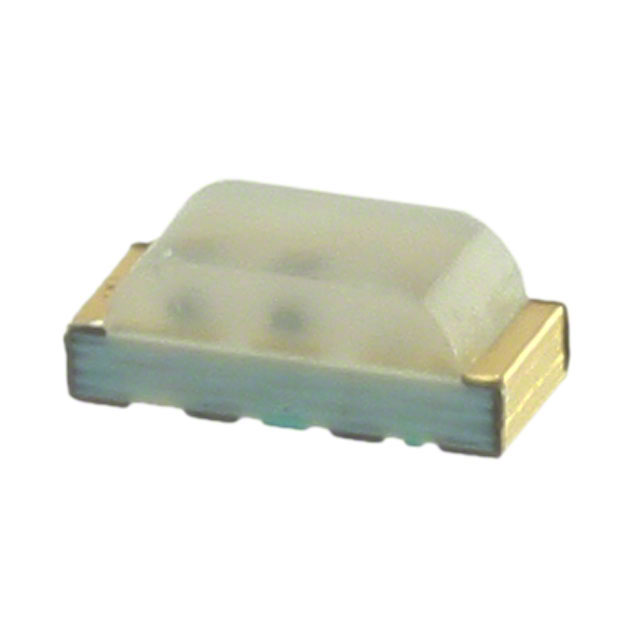

HSMF-C113

$1.25

Description：LED RGB DIFFUSED CHIP SMD R/A
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5259a4830c37 Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HSMF-C113 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED RGB DIFFUSED CHIP SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for HSMF-C113

Description：LED RGB DIFFUSED CHIP SMD R/A
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：80mcd Red, 50mcd Green, 60mcd Blue
Lens Style：Rectangle with Domed Top
Lens Size：2.10mm x 1.00mm
Voltage - Forward (Vf) (Typ)：1.9V Red, 2V Green, 3.4V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120° Red, 125° Green, 125° Blue
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：626nm Red, 572nm Green, 470nm Blue
Wavelength - Peak：637nm Red, 570nm Green, 468nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：2.50mm L x 1.00mm W
Height (Max)：1.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for HSMF-C113

HSMF-C113

LED Indication - Discrete Overview

The HSMF-C113 is a right-angle, surface-mount tri-color chip LED from Broadcom's HSMF-C113/4/5/8 series. It integrates three dies within a compact package to produce Red, Green, and Blue light. The device features a diffuse optical lens and utilizes AlInGaP and InGaN die technology for high brightness. Designed with a low profile, it supports common anode configurations and is compatible with reflow soldering processes.

LED Indication - Discrete Feature Summary

Integrates three distinct color dies into a single ultra-small surface-mount package
Features a diffuse optical lens for uniform light distribution
Utilizes high-brightness AlInGaP and InGaN semiconductor die technology
Designed with a low-profile form factor suitable for space-constrained applications

LED Indication - Discrete Applications

Backlighting systems
Status indication indicators
Front panel illumination
Office automation equipment
Home appliances

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and ordering suffixes to ensure compatibility with required forward voltage and wavelength specifications. Confirm that the common anode configuration aligns with the target circuit design. Ensure the selected component meets the necessary reflow soldering thermal profile requirements for reliable assembly.

LED Indication - Discrete Selection Notes

Select this component when miniaturization is critical due to its ultra-small package dimensions. Consider the RGB color mixing capabilities for applications requiring variable color output. Evaluate the right-angle orientation against board layout constraints and verify that the diffuse lens characteristics meet the required viewing angle specifications.

LED Indication - Discrete Part Context

This part belongs to the HSMF-C113/4/5/8 family of right-angle, tri-color chip LEDs. These components are designed for applications demanding small footprint and thin profiles. The series offers various color combinations by mixing three primary base colors within a single package structure.
