HSMG-C110

LED Indication - Discrete Overview

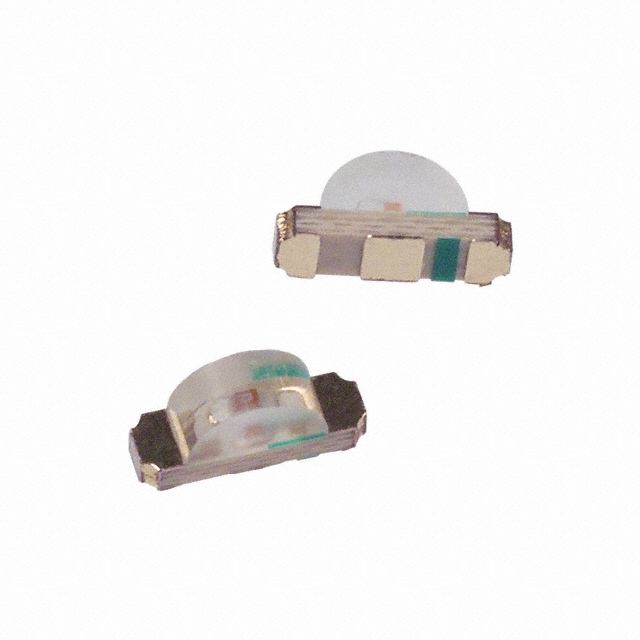

The HSMG-C110 is a single-color green LED from the HSMD series by Broadcom Limited. It features a side-viewer package with dimensions of 3.2 mm x 1 mm x 1.5 mm and a dome-shaped, non-diffused colorless lens. The component emits light at a peak wavelength of 572 nm with an optical intensity of 15 mcd. Electrical characteristics include a forward voltage of 2.2 V and a maximum power rating of 65 mW when driven at a test current of 20 mA. It offers a wide viewing angle of 130 degrees and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Side-viewer configuration for visibility in confined spaces
• Non-diffused dome lens for focused light emission
• RoHS compliant construction

LED Indication - Discrete Applications

• Indicator lights
• Backlighting
• Decorative lighting

LED Indication - Discrete Procurement Notes

Verify that the specific part number matches the required green wavelength (572 nm) and luminous intensity (15 mcd). Confirm the side-viewer package orientation aligns with the PCB layout requirements. Ensure compliance with moisture sensitivity levels if storage conditions require baking prior to reflow soldering. Cross-reference datasheet specifications against design constraints to guarantee thermal and electrical compatibility.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a low-profile, side-emitting green indicator. The 3.2 mm x 1 mm footprint suits dense surface-mount layouts. Consider the 130-degree viewing angle for broad visibility needs. Verify that the 2.2 V forward voltage drop fits within the circuit's drive capabilities. Ensure the non-diffused lens type meets the visual clarity requirements of the end product.

LED Indication - Discrete Part Context

This device belongs to the HSMD series of single-color LEDs manufactured by Broadcom Limited. The series utilizes GaP material technology to produce distinct spectral outputs. The HSMG-C110 specifically targets the green spectrum segment, offering a standardized SMD form factor compatible with automated assembly processes commonly used in consumer electronics manufacturing.

LED Indication - Discrete Replacement Considerations

HSMG-C110 is functionally similar to other green side-viewer LEDs in the HSMD family, such as those with different suffixes indicating minor packaging or binning variations. Direct substitutes must match the 3.2x1mm side-viewer footprint and 572nm peak wavelength. Verify pinout compatibility and thermal resistance ratings before substitution.
