HSMY-C177

LED Indication - Discrete Overview

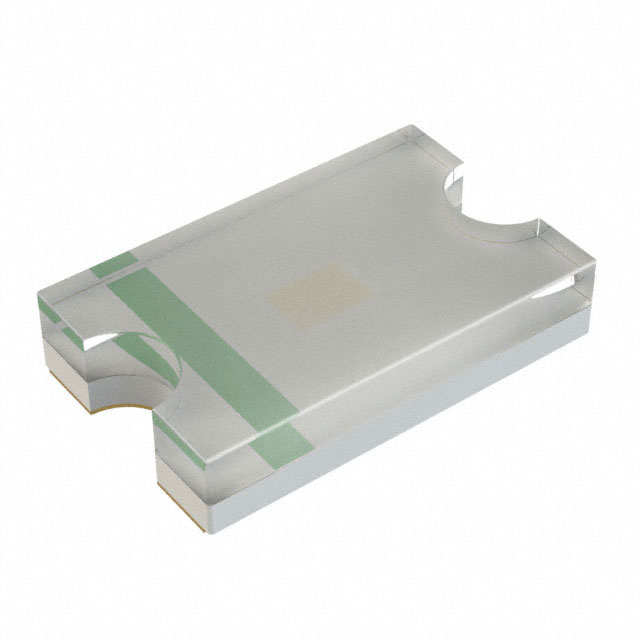

The HSMY-C177 is a single-color GaP LED manufactured by Broadcom Limited, designed for surface-mount technology applications. It emits yellow light with a peak wavelength of 586 nm and features a diffused lens for wide viewing angles. The component operates within a standard forward current of 20 mA and has a typical forward voltage of 2.2 V. Packaged in an 0805 (2012 metric) SMD footprint, it offers a rated power dissipation of 52 mW. The device supports an operating temperature range from -40 °C to +85 °C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Emits yellow light at a 586 nm peak wavelength
• Utilizes a diffused lens for broad visibility
• Designed for surface-mount assembly on PCBs
• Operates reliably across extended industrial temperatures

LED Indication - Discrete Applications

• General-purpose electronic equipment status indicators
• Control panel visual signaling systems
• Consumer appliance front-panel displays
• Industrial machinery operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the official Broadcom datasheet to ensure correct binning and optical characteristics. Confirm that the procurement channel provides valid traceability documentation. Check for moisture sensitivity handling requirements during storage and reflow soldering processes. Ensure compliance with current environmental regulations such as RoHS3 before finalizing supply chain agreements.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow indicator is required for surface-mount designs. Consider the 0805 package dimensions for board space constraints. Evaluate the 586 nm wavelength against human visibility requirements for the specific application environment. Verify thermal management capabilities given the 52 mW power rating and operating temperature limits.

LED Indication - Discrete Part Context

This part belongs to Broadcom's Chip LED series, specifically the HSMY variant designated for yellow emission. It shares the 0805 form factor with other devices in the family but differs in color and spectral output. The product line focuses on providing reliable, high-brightness indicators for modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
