Product Detailed Parameters
- Description：DIGITAL DOWN CONVERTER, SYNTHESI
- Series：*
- Mfr：Harris Corporation
- Package：Bulk
- Function：-
- Frequency：-
- RF Type：-
- Secondary Attributes：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

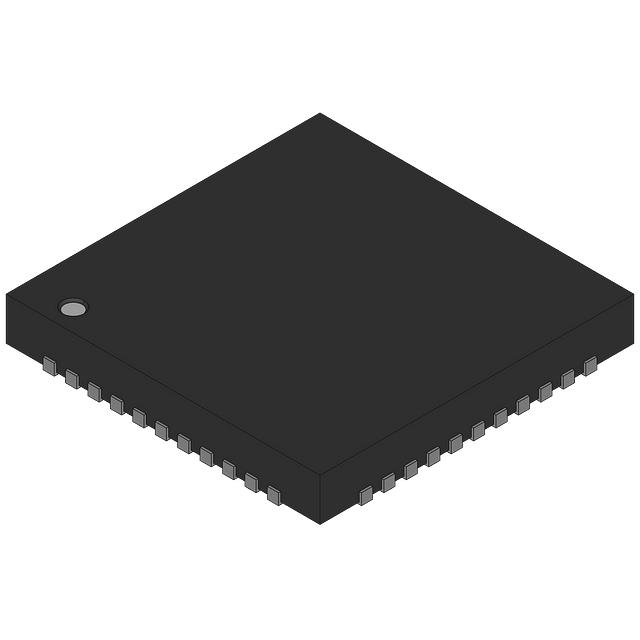

The HSP50016JI-52-HC is a digital down converter IC manufactured by Harris Corporation. It belongs to the HSP50016 series and is designed for RF applications including AMPS, CDMA, Cellular, GSM, NA, and TDMA systems. The component utilizes a 44-LCC (J-Lead) surface mount package with dimensions of 16.58x16.58 mm. It is RoHS compliant and lead-free. The device functions as a synthesizer-based digital down converter for wireless communication infrastructure.
Feature Summary
- Digital down conversion capability for multi-standard RF signals
- Surface mount J-Lead package design
- RoHS compliant and lead-free construction
Applications
- AMPS cellular systems
- CDMA network infrastructure
- GSM base station implementations
- TDMA communication protocols
Procurement Notes
Verify RoHS compliance status and lead-free certification through official manufacturer documentation or authorized distributor certificates. Confirm package integrity and pin alignment against the 44-LCC specification sheet. Ensure the part number suffix matches the exact HC variant to avoid functional discrepancies in synthesizer integration.
Selection Notes
Select this component for designs requiring digital down conversion in legacy and current cellular standards. Verify compatibility with system clock frequencies and interface requirements. Consider thermal management within the PLCC footprint. Evaluate supply chain availability due to potential obsolescence risks associated with older RF IC families.
Part Context
This part is part of the HSP50016 family of digital signal processing components. It serves as a specialized RF front-end solution for converting high-frequency analog signals to lower frequency digital outputs. The manufacturer Harris Corporation has historically focused on high-performance mixed-signal integrated circuits for telecommunications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with Harris Corporation application notes for direct pin-compatible alternatives or functional equivalents within the same product line.
