HSP50214BVCZ

Overview

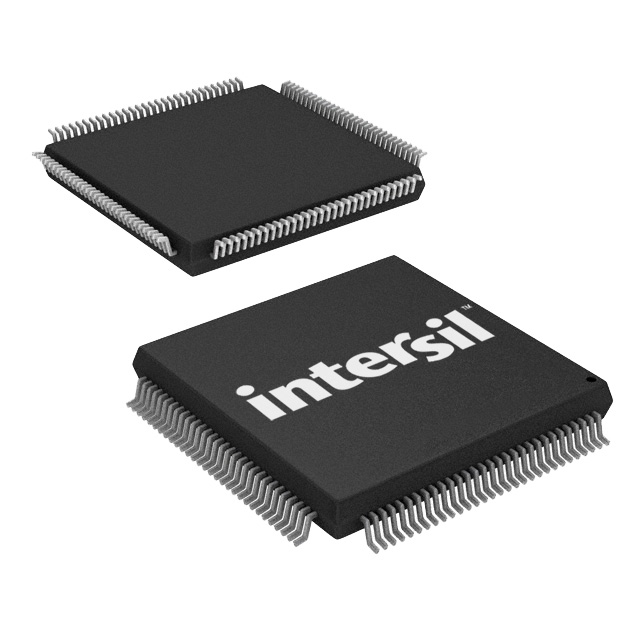

The HSP50214BVCZ is a programmable downconverter integrated circuit manufactured by Renesas Electronics Corporation. It features a 14-bit resolution and is housed in a 120-pin MQFP surface-mount package. The device is designed to convert digitized intermediate frequency (IF) data into filtered baseband data, facilitating processing by standard DSP microprocessors.

Feature Summary

• Converts digitized IF data into filtered baseband data for DSP processing
• Features 14-bit resolution for signal conversion
• Utilizes a 120-pin MQFP surface-mount package

Applications

• AMPS systems
• CDMA systems
• GSM systems
• TDMA systems

Procurement Notes

Verify the component status as obsolete or active through official Renesas channels before procurement. Confirm the specific suffix 'V' indicates the correct package variant. Ensure compatibility with existing board layouts for the 120-pin MQFP footprint. Request detailed datasheets for interface timing requirements.

Selection Notes

Select this component when a dedicated hardware solution is required to downconvert digitized IF signals to baseband for subsequent digital signal processing. Consider the 14-bit resolution and MQFP packaging constraints relative to system size and performance needs.

Part Context

This part belongs to the HSP50214B series of programmable downconverters. It serves as a specialized RF IC for mobile communication standards, bridging the gap between analog front-end digitization and digital baseband processing in wireless infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Check Renesas archives for legacy replacements.
