HTSS-110-02-L-D

Headers, Male Pins Overview

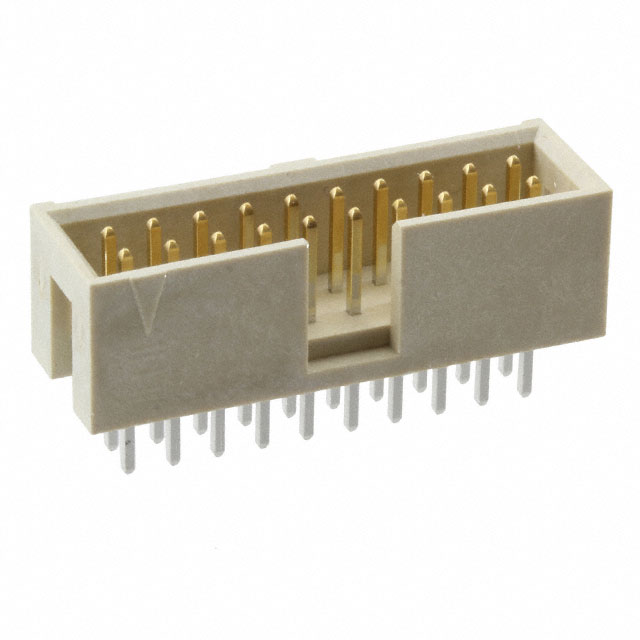

The HTSS-110-02-L-D is a vertical header connector from the Flex Stack HTSS series by Samtec Inc. It features a 2.54mm (0.100 inch) pitch with 20 positions arranged in a dual-row configuration. The connector utilizes through-hole termination and includes an end shroud for polarized mating. Contact materials consist of phosphor bronze with tin plating on both the post and tail sections. The housing is made of natural-colored liquid crystal polymer (LCP), rated UL94 V-0, and supports an operating temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides polarized blind mating capability
• Through-hole termination ensures secure PCB mounting
• Tin-plated phosphor bronze contacts offer corrosion resistance

Headers, Male Pins Applications

• High-reliability board-to-board interconnections
• Blind mating applications requiring polarization
• Industrial control system backplanes

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to confirm contact plating thickness and insulation material properties. Ensure the selected variant matches the required thermal rating and mechanical retention specifications for the target assembly environment.

Headers, Male Pins Selection Notes

Select this component when a 2.54mm pitch vertical header with shrouded polarization is required. Confirm that the through-hole termination style aligns with the PCB fabrication capabilities and that the LCP insulation material meets the thermal requirements of the soldering process.

Headers, Male Pins Part Context

This part belongs to the HTSS series, designed for high-temperature and high-reliability environments within the Flex Stack family. It complements socket strips like the ESQ series, providing a robust solution for dense interconnect needs where misalignment prevention is critical.

Headers, Male Pins Replacement Considerations

The TSS-110-02-L-D offers similar electrical characteristics but lacks the end shroud feature. Verify if the loss of polarization is acceptable for the application before substituting.
