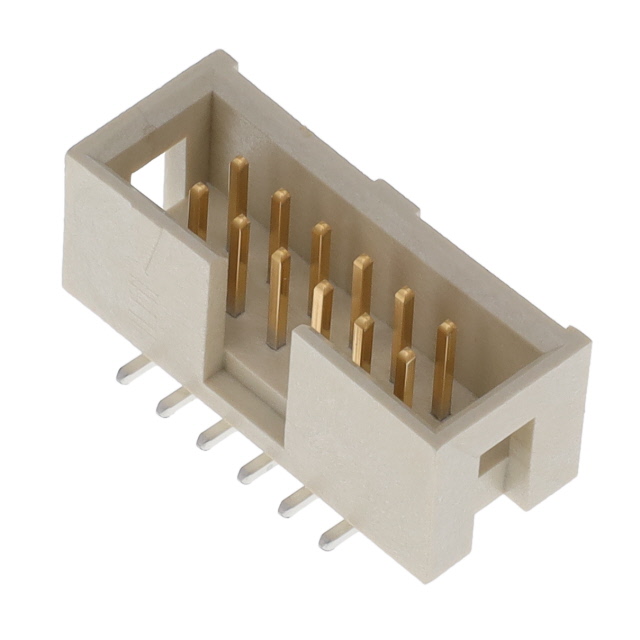

HTST-106-01-L-DV

Headers, Male Pins Overview

The HTST-106-01-L-DV is a Samtec Flex Stack shrouded terminal strip featuring a 2.54 mm pitch and 14 positions across two rows. Designed for surface mount installation, it utilizes gold-plated phosphor bronze contacts with an unlatched closure mechanism. The component operates within a temperature range of -55°C to +125°C and supports a current rating of 3.4 A. It includes a polarization notch and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High-temperature shrouded design for reliable cable assembly connections
• Surface mount termination with straight pin configuration
• Polarization notch ensures correct mating alignment

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board assemblies
• Cable mate applications requiring high-temperature stability

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm exact contact plating thickness, insulation material properties, and packaging specifications. Ensure the selected variant matches the required surface mount footprint and thermal performance criteria for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a shrouded header with a 2.54 mm pitch is required for surface mount applications. Consider the 3.4 A current rating and -55°C to +125°C operating range. Verify that the 14-position count and dual-row configuration align with the circuit density requirements.

Headers, Male Pins Part Context

This part belongs to the HTST series, representing .100 inch (2.54 mm) high-temperature shrouded terminal strips. The series is engineered for robust connections in demanding environments, offering both through-hole and surface mount options with standardized pin counts ranging from 10 to 72 positions.

Headers, Male Pins Replacement Considerations

Consult Samtec's official cross-reference data for direct substitutes. Compatible alternatives may include other HTST variants with adjusted position counts or FTSH series headers if pitch differences are acceptable.
