HTST-112-01-L-DV-A-P-TR

Headers, Male Pins Overview

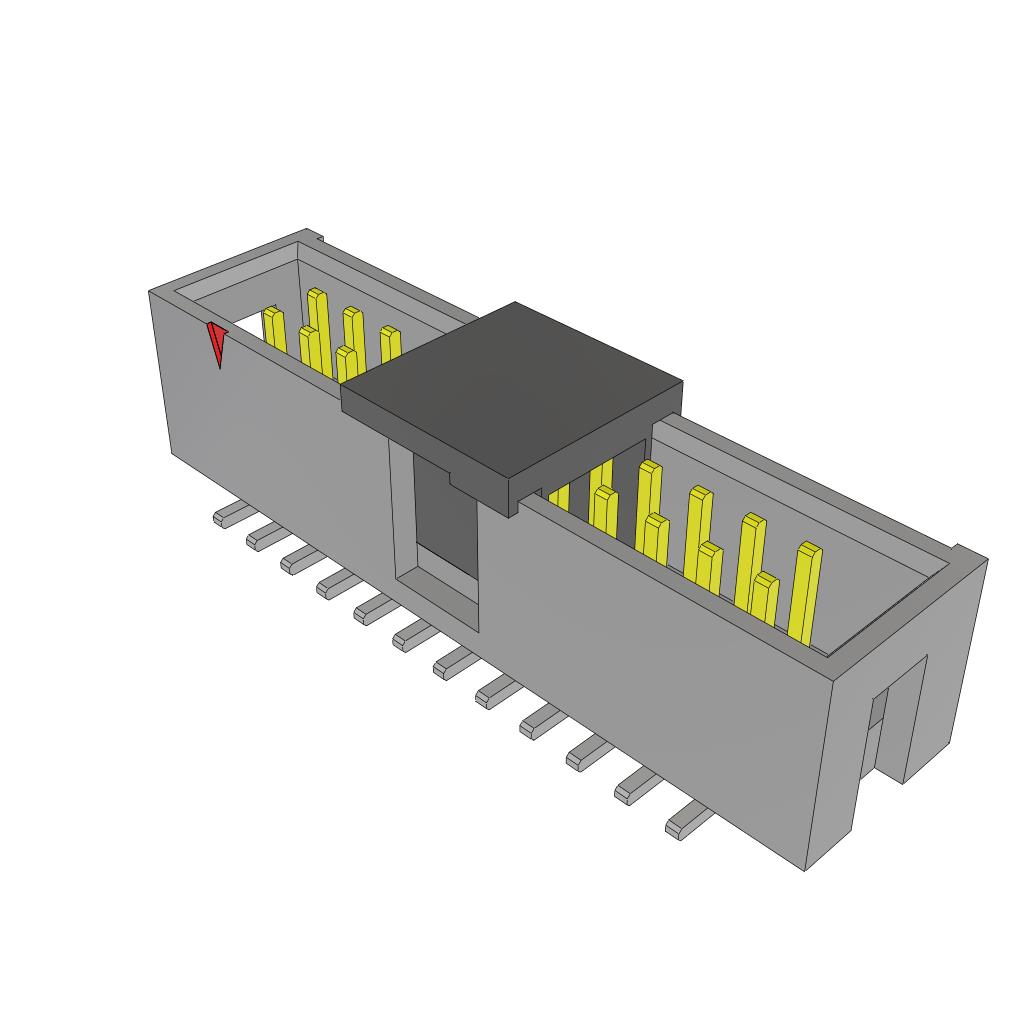

The HTST-112-01-L-DV-A-P-TR is a .100" (2.54mm) pitch High-Temp Shrouded Terminal Strip manufactured by Samtec Inc. It features a 24-position, double-row male header configuration designed for surface mount technology (SMT). The connector utilizes phosphor bronze contacts with tin plating on the posts and gold plating on the mating interface. Rated for 3.4A per contact, it operates within a temperature range of -55°C to 125°C. The housing is constructed from natural-colored liquid crystal polymer (LCP) with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• High-temperature resistant design utilizing LCP insulation for stable performance in elevated thermal environments
• Four-wall shrouded housing structure providing mechanical protection and precise alignment during cable assembly mating
• Integrated board guide rails and polarization notches to facilitate automated pick-and-place processing and prevent misalignment

Headers, Male Pins Applications

• High-temperature electronic assemblies requiring reliable signal interconnection
• Cable-to-board connections utilizing .100 inch square post terminal strips
• Automated surface mount manufacturing processes requiring polarized headers

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required termination style and packaging format. Confirm that the tin-plated post configuration aligns with the mating component requirements. Ensure the high-temperature rating meets the operational thermal profile of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a shrouded, high-temperature SMT header is required for .100 inch pitch applications. Consider the 3.4A current rating and -55°C to 125°C operating range against system constraints. Evaluate the need for polarization features to ensure correct orientation during assembly.

Headers, Male Pins Part Context

This part belongs to the Flex Stack HTST series, which provides high-temperature shrouded terminal strips for cable assemblies. The series offers various row counts and mounting styles, including through-hole and surface mount options, catering to diverse interconnection needs in demanding environments.

Headers, Male Pins Replacement Considerations

HTST-112-01-L-DV-P

Headers, Male Pins FAQ

What is the material composition of the contacts?

The contacts are made of phosphor bronze, featuring tin plating on the posts and gold plating on the mating interface.

Does the connector include polarization features?

Yes, the connector includes polarization notches and board guide rails to assist with proper alignment and automated placement.
