HTSW-104-14-G-S-LL

Headers, Male Pins Overview

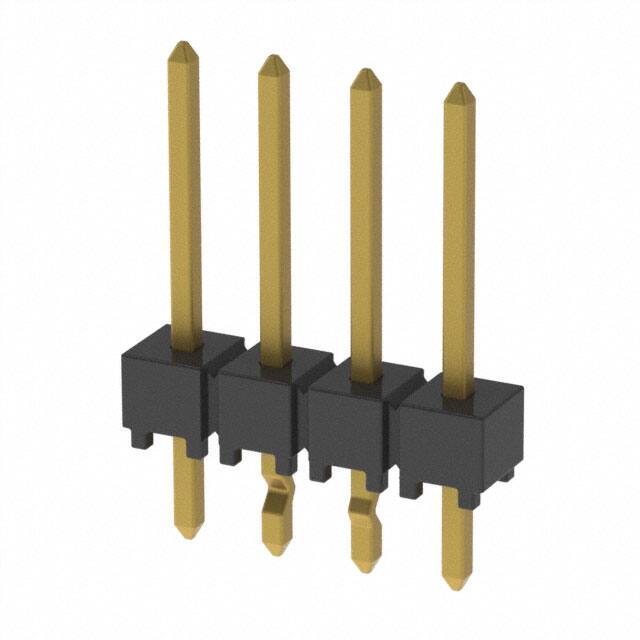

Samtec Inc. HTSW-104-14-G-S-LL is a vertical pin header connector from the HTSW series, designed for through-hole mounting on printed circuit boards. It features a single row with four positions and a 0.100" (2.54mm) pitch. The connector utilizes square male pins with gold plating on the mating interface and tin plating on the tail. Constructed with liquid crystal polymer (LCP) insulation, it supports a wide operating temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High-temperature design utilizing liquid crystal polymer insulation for thermal stability
• Square post contact system optimized for reliable board-to-board connections
• Gold-plated mating surfaces ensure consistent electrical performance

Headers, Male Pins Applications

• High-temperature PCB interconnects
• Board-to-board signal routing
• Industrial control systems requiring thermal resilience

Headers, Male Pins Procurement Notes

Verify the specific suffix 'LL' against official Samtec documentation to confirm lead length specifications. Ensure compatibility with mating connectors regarding pin height and insulation thickness. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when high-temperature operation up to 125°C is required. The LCP material provides superior thermal resistance compared to standard nylon headers. Verify that the 0.100" pitch and 4-position configuration align with the target PCB layout and mating connector requirements.

Headers, Male Pins Part Context

The HTSW series represents Samtec's high-temperature terminal strip headers. These unshrouded through-hole headers are engineered for demanding environments where standard connectors may fail due to heat. The series offers various termination options and is suitable for applications requiring robust mechanical and electrical performance under thermal stress.

Headers, Male Pins Replacement Considerations

HTSW-104-14-G-S is a similar variant within the same series but lacks the specific lead length designation. Verify dimensional compatibility before substitution.
