HTSW-105-08-G-S

Headers, Male Pins Overview

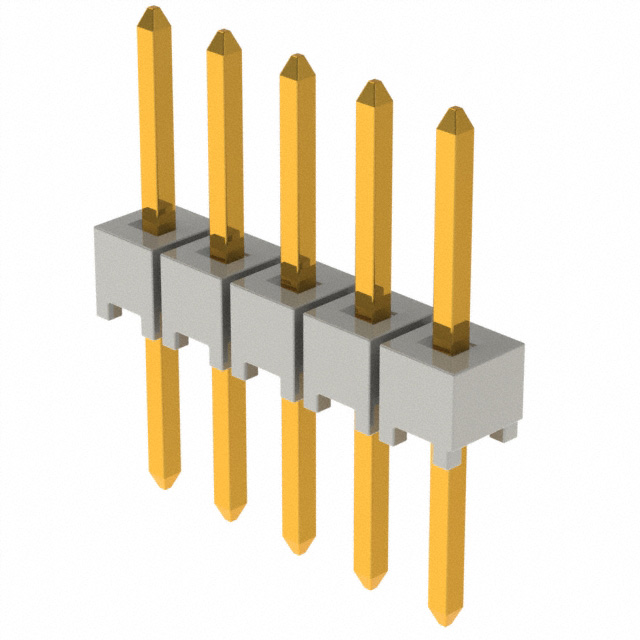

The HTSW-105-08-G-S is a vertical PCB header manufactured by Samtec Inc., featuring 5 positions with a 0.100" (2.54mm) pitch. It utilizes through-hole mounting and solder termination. The connector employs phosphor bronze contacts with gold plating on both mating and tail sections, housed in natural liquid crystal polymer insulation rated UL94 V-0. It operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-temperature design suitable for demanding thermal environments
• Unshrouded single-row configuration for flexible board-to-board or cable connections
• Square post contact shape ensures precise alignment during mating

Headers, Male Pins Applications

• Board-to-board interconnections in high-temperature electronics
• Cable-to-board assemblies requiring robust thermal stability
• General-purpose signal routing in industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating connectors regarding contact length and insulation height. Check RoHS compliance status if required by project specifications. Confirm lead time availability directly with authorized distributors as standard delivery periods may vary based on current supply chain conditions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, unshrouded header is required for high-temperature applications. The 0.100 inch pitch is standard for many legacy and modern digital interfaces. Consider the single-row layout for space-constrained designs where multi-row headers are unnecessary. Verify that the through-hole mounting method aligns with the target PCB fabrication capabilities and mechanical stress requirements.

Headers, Male Pins Part Context

This part belongs to the HTSW series, which represents high-temperature terminal strip headers from Samtec. These components are designed for reliability in environments exceeding standard commercial temperature ranges. The series offers various pin counts and configurations, making it a versatile solution for power and signal distribution in rugged electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other HTSW series variants with matching pin counts and pitch, such as HTSW-105-08-G-S-LL for lower profile needs. Cross-reference with TSW series parts if shrouding is not critical, though electrical characteristics must be verified. Always validate mechanical dimensions and material specifications before substitution.
