HTSW-105-08-SS-S

Headers, Male Pins Overview

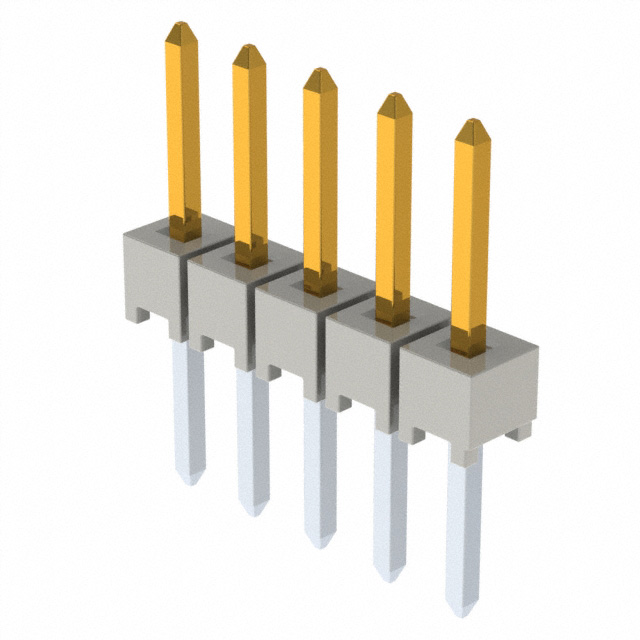

The HTSW-105-08-SS-S is a vertical pin header manufactured by Samtec Inc., featuring 5 positions in a single row with a 0.100-inch (2.54mm) pitch. Designed for through-hole termination, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the tail. The housing is constructed from natural liquid crystal polymer (LCP), rated UL94 V-0 for flammability. It operates within a temperature range of -55°C to 125°C and supports up to 400VAC voltage ratings.

Headers, Male Pins Feature Summary

• Vertical board-to-board or cable connection capability
• Gold-plated mating contacts for reliable signal transmission
• High-temperature resistant LCP insulation material
• Through-hole soldering termination style

Headers, Male Pins Applications

• Compact electronic circuit board interconnections
• Industrial control system module connections
• Consumer electronics internal wiring harnesses
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'SS' confirms single-row configuration and standard contact length when sourcing. Ensure the ordering part number matches the exact pin count and pitch requirements for the target PCB footprint. Confirm RoHS3 compliance status if environmental regulations apply to the assembly process.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, single-row header with robust thermal stability. The LCP material offers superior heat resistance compared to standard thermoplastics. Verify that the 0.100-inch pitch aligns with existing board layout constraints and mating connector specifications.

Headers, Male Pins Part Context

This part belongs to the HTSW series of high-temperature terminal strips from Samtec. The series provides various pin counts and configurations for general-purpose interconnect needs. The HTSW-105-08-SS-S represents a specific variant optimized for compact vertical mounting scenarios.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec headers with identical 5-position, single-row, 2.54mm pitch specifications. Cross-reference mechanical dimensions and electrical ratings before adopting alternative manufacturers' components.
