HTSW-105-14-T-S-LL

Headers, Male Pins Overview

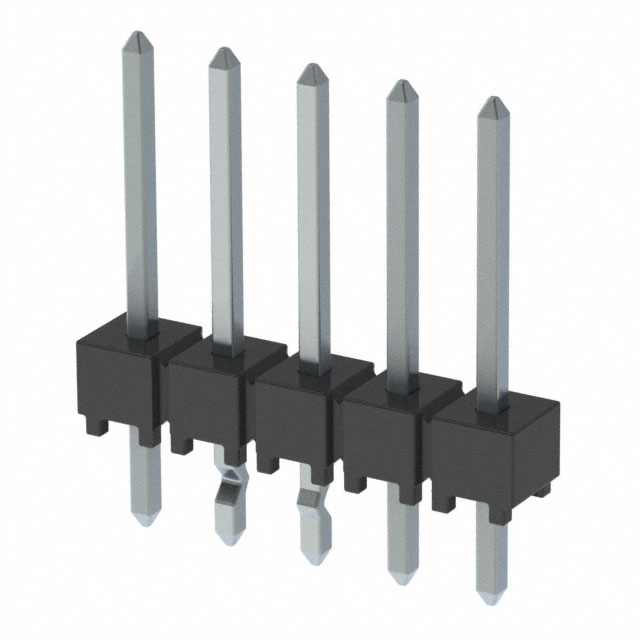

The HTSW-105-14-T-S-LL is a vertical header connector manufactured by Samtec Inc., designed for through-hole PCB mounting. It features a single row with five positions and a 0.100 inch (2.54 mm) pitch spacing. The connector utilizes male pin contacts made of phosphor bronze with tin plating on both the mating and tail sections. Insulation is provided by natural-colored liquid crystal polymer (LCP), rated UL94 V-0 for flammability. The unit operates within a temperature range of -55°C to 105°C and has a maximum voltage rating of 550VAC.

Headers, Male Pins Feature Summary

• Single-row vertical header configuration for standard PCB integration
• Tin-plated phosphor bronze contacts ensure reliable electrical conductivity
• High-temperature LCP insulation supports operation up to 105°C
• Through-hole termination method provides secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and breadboarding setups
• Industrial control panel wiring interfaces
• Consumer electronics assembly requiring standard pitch headers

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required single-row, five-position configuration before ordering. Confirm that the through-hole mounting style aligns with the target PCB design specifications. Ensure compliance with RoHS3 standards if environmental regulations apply to the final product assembly. Cross-reference the operating temperature range against the intended application environment to guarantee long-term reliability under thermal stress conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row, low-profile header is required for direct PCB connection. The 0.100 inch pitch is suitable for standard wire-to-board applications. Consider the 550VAC rating for appropriate voltage isolation requirements. Evaluate the tin plating finish for compatibility with mating connectors and soldering processes. Assess the physical dimensions against available board space constraints.

Headers, Male Pins Part Context

This component belongs to the HTSW series of high-temperature terminal strips from Samtec Inc. The series offers various configurations including single and double rows with different contact counts. The HTSW designation indicates a standard height version optimized for general connectivity needs. Similar parts in the lineup may differ in row count, position quantity, or contact material finishes while maintaining the same fundamental structural design principles.

Headers, Male Pins Replacement Considerations

Direct substitutes include TSW-105-14-T-S-LL and HTSW-105-14-T-S-004, which share identical electrical and mechanical specifications. Verify that any replacement maintains the single-row, five-position layout and 2.54mm pitch. Ensure the replacement part retains the through-hole termination style and compatible insulation material properties for equivalent performance.

Headers, Male Pins FAQ

What is the maximum voltage rating for this connector?

The HTSW-105-14-T-S-LL has a maximum voltage rating of 550VAC.

Is the connector RoHS compliant?

Yes, the component is RoHS3 compliant as per manufacturer specifications.

What material is used for the insulation?

The insulation is made from natural-colored liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
