HTSW-113-08-G-D-RA

Headers, Male Pins Overview

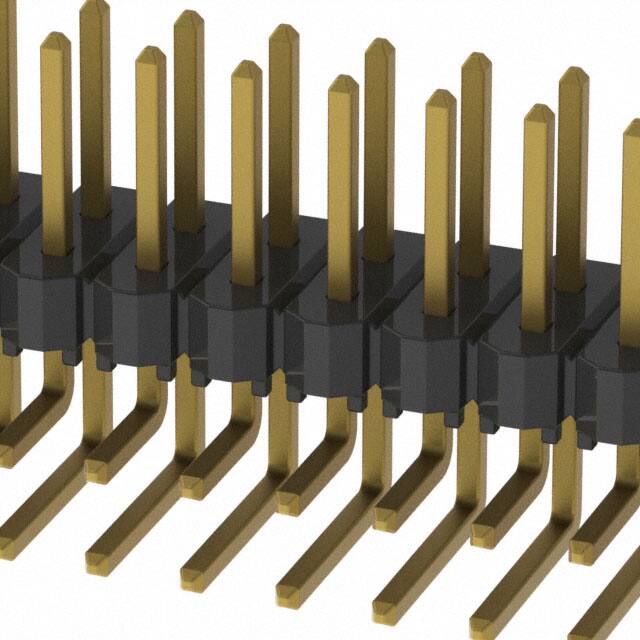

Samtec HTSW-113-08-G-D-RA is a right-angle pin header strip featuring a 2.54 mm (0.100 inch) pitch and 26 positions across two rows. The connector utilizes phosphor bronze contacts with 10 µin gold plating on the mating interface and 3 µin gold on the tail. Designed for through-hole termination, it offers an insulation height of 0.240 inches and operates within a temperature range of -55°C to +125°C. The housing is constructed from natural liquid crystal polymer rated UL94 V-0.

Headers, Male Pins Feature Summary

• Right-angle board-to-board interconnect design
• High retention Tiger Buy contact system
• Gold-plated phosphor bronze terminals
• UL94 V-0 flame retardant LCP insulation

Headers, Male Pins Applications

• Board-to-board connections
• Cable-to-board assemblies
• Prototype development
• Retrofit applications

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm terminal length and orientation. Ensure the selected variant matches the required PCB stack-up and mating partner specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to final procurement approval.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle male header is required for dense PCB layouts. The standard 0.100-inch pitch ensures compatibility with industry-standard female sockets. Consider the variable post height options if specific stacking heights or clearance constraints are present in the mechanical design.

Headers, Male Pins Part Context

The HTSW series represents Samtec's classic high-temperature terminal strips. This model belongs to the standard pin header family, distinguished by its rigid construction and reliable solder tail termination. It serves as a fundamental interconnect solution for general-purpose electronic assemblies requiring robust mechanical stability.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TSW-113-08-G-D for straight mounting configurations. For socket alternatives, consider SSW-113-08-G-D-RA. Verify that any replacement maintains identical pitch, current ratings, and insulation material properties.
