HTSW-118-05-T-S

Headers, Male Pins Overview

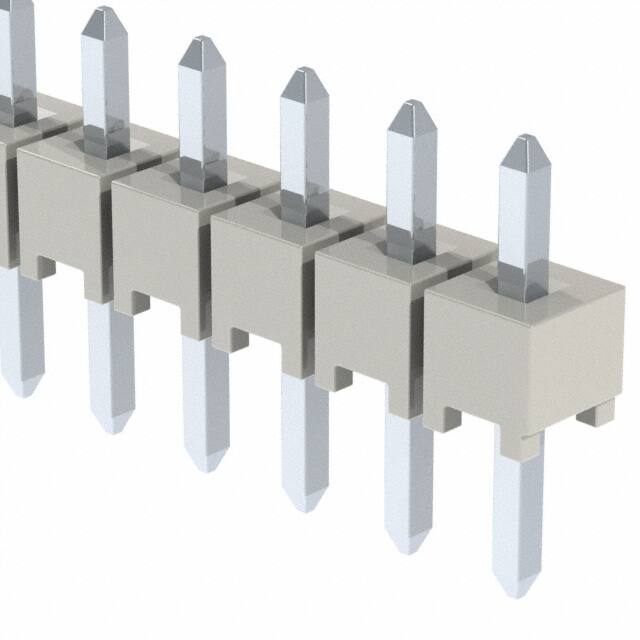

Samtec Inc. HTSW-118-05-T-S is a single-row vertical header connector designed for through-hole PCB mounting. It features a 0.100-inch (2.54 mm) contact pitch and provides 18 positions. The contacts are male pins with a square shape, constructed from phosphor bronze and finished with tin plating on both the mating and tail sections. The housing utilizes natural-colored liquid crystal polymer (LCP), rated UL94 V-0 for flammability. Operating temperature ranges from -55°C to 105°C.

Headers, Male Pins Feature Summary

• Single-row configuration with standard 0.100 inch spacing
• Through-hole termination with solder tails
• Tin-plated phosphor bronze contacts for reliable conductivity
• High-temperature LCP insulation material

Headers, Male Pins Applications

• General-purpose board-to-board interconnects
• Industrial control system signal routing
• Consumer electronics internal connections
• Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm pin count and orientation. Ensure the selected variant matches the required thermal profile for your assembly process. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and compliance status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, low-profile header is required for standard 2.54mm spacing applications. Consider the through-hole termination method for robust mechanical stability during wave or selective soldering processes. Evaluate the operating temperature range and material compatibility with adjacent components in the design layout.

Headers, Male Pins Part Context

The HTSW series represents Samtec's standard line of .100 inch pitch headers. This specific model belongs to the T-S designation family, indicating a single row with standard tail length. It serves as a fundamental passive interconnect solution within the broader rectangular connector portfolio, widely used in legacy and modern electronic assemblies requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Compatible substitutes include HTSW-118-07-T-S or HTSW-118-06-T-S for varying pin counts within the same series. Alternative manufacturers offering equivalent 0.100 inch pitch through-hole headers may be considered if form, fit, and function data sheets confirm identical electrical and mechanical specifications.
