HTSW-120-14-L-S

Headers, Male Pins Overview

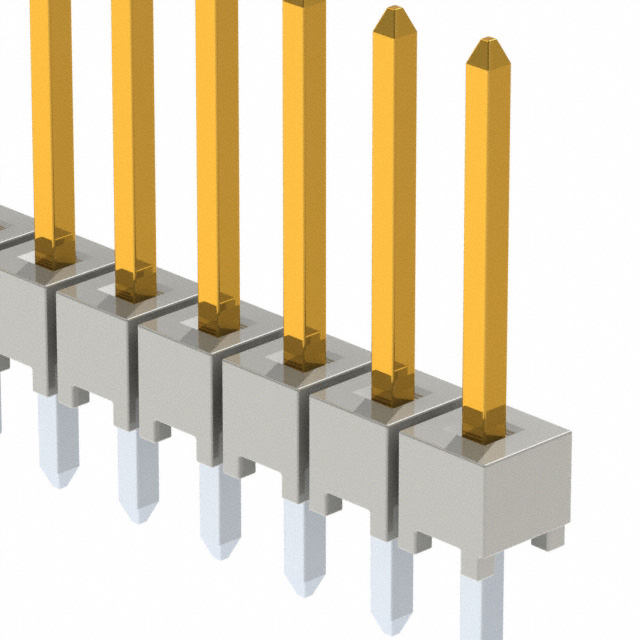

The HTSW-120-14-L-S is a single-row PCB header manufactured by Samtec Inc. It features a 0.100" (2.54mm) pitch and contains 20 positions. The connector utilizes phosphor bronze contacts with gold plating on the mating surface and matte tin on the tail, housed in a natural liquid crystal polymer (LCP) insulator. Designed for through-hole mounting, it supports board-to-board or cable applications within an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-temperature design suitable for most high-temperature board processing
• Push-pull locking mechanism secures connection
• Gold-plated square pin contacts ensure reliable signal transmission

Headers, Male Pins Applications

• High-temperature board processing environments
• Board-to-board interconnections
• Cable-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'LL' if low-profile requirements exist, as standard HTSW parts differ from LL variants. Confirm RoHS3 compliance status during procurement. Ensure the selected part matches the required contact length and row configuration for the target assembly.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust thermal stability and standard 0.100-inch spacing. Verify that the single-row configuration meets the circuit density requirements. Ensure the through-hole termination method aligns with the manufacturing process capabilities of the printed circuit board.

Headers, Male Pins Part Context

This part belongs to the HTSW series of high-temperature PCB header strips. The series offers extensive design flexibility with various terminal lengths and configurations. It is engineered to withstand rigorous thermal conditions while maintaining electrical integrity in demanding electronic assemblies.

Headers, Male Pins Replacement Considerations

HTSW-120-14-L-S-LL serves as a low-profile alternative within the same series. Other HTSW variants with different pin counts or row configurations may be considered if mechanical constraints allow.
