HTSW-150-08-L-S-RA

Headers, Male Pins Overview

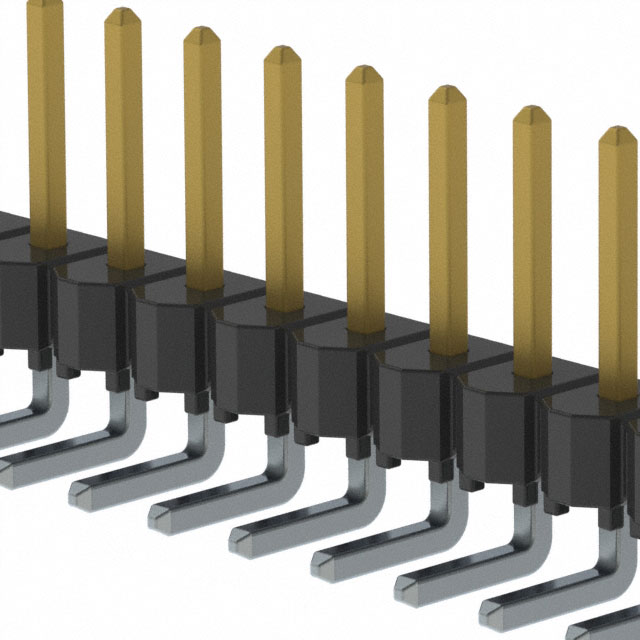

The HTSW-150-08-L-S-RA is a right-angle pin header from the Samtec HTSW series, designed for through-hole mounting. It features 50 positions arranged in a single row with a 0.100" (2.54mm) pitch. The connector utilizes phosphor bronze contacts with 10.0µin gold plating on mating surfaces and tin plating on posts. Constructed with natural liquid crystal polymer insulation rated UL94 V-0, it supports operating temperatures from -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-temperature terminal strip design utilizing liquid crystal polymer insulation
• Right-angle configuration for efficient board-to-board or cable connections
• Unshrouded header style with square post contact geometry

Headers, Male Pins Applications

• High-density electronic assemblies requiring right-angle interconnects
• Industrial control systems operating within extended temperature ranges
• Consumer electronics utilizing board-to-board or cable-to-board linking

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to ensure correct orientation and termination type. Confirm that the unshrouded design aligns with assembly requirements. Check RoHS3 compliance status for environmental regulations. Ensure mating connectors match the 0.025" square post specification for reliable engagement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row header is required for high-temperature environments. The LCP material offers superior thermal stability compared to standard polyester insulators. Verify that the unshrouded form factor does not conflict with adjacent components on the PCB layout.

Headers, Male Pins Part Context

This part belongs to the HTSW series of high-temperature terminal strip headers. These components are engineered for robust performance in demanding applications. The series provides various pin counts and configurations while maintaining consistent electrical characteristics and mechanical reliability standards defined by the manufacturer.

Headers, Male Pins Replacement Considerations

Direct substitutes include other HTSW series variants with matching pin counts and pitch. Cross-reference TSW series parts only if straight-mount options are acceptable. Verify that alternative suppliers offer identical LCP insulation and gold plating specifications.
