HVCB1206FDD500M

Overview

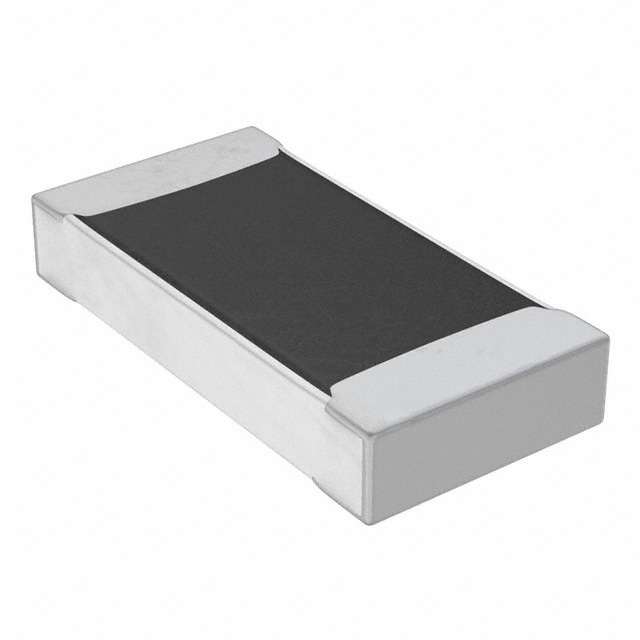

The HVCB1206FDD500M is a high-voltage thick film surface mount resistor manufactured by Stackpole Electronics Inc. It features a 1206 package with a resistance of 500 milliohms, a power rating of 0.33 watts at 70°C, and a tolerance of 1%. The component operates within a temperature range of -55°C to +150°C, has a voltage rating of 1.5 kV, and utilizes a solder wrap termination design.

Feature Summary

• Utilizes a solder wrap termination design for enhanced mechanical stability
• Engineered for high-voltage applications with robust pulse handling capabilities
• Constructed using thick film technology for reliable performance in compact spaces

Applications

• High voltage circuit protection
• Industrial control systems
• Power supply current sensing

Procurement Notes

Verify the specific suffix 'FDD' against official Stackpole documentation to confirm the 1% tolerance and 500mOhm value. Ensure the 1.5 kV voltage rating aligns with your circuit requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration.

Selection Notes

Select this component when a low-resistance, high-voltage capable SMD resistor is required. The 1206 footprint offers a balance between power dissipation and board space. Consider the 1.5 kV rating for isolation needs and the solder wrap terminations for vibration resistance in demanding environments.

Part Context

This part belongs to the HVCB series of high-voltage chip resistors from Stackpole Electronics. The series is designed to provide high voltage ratings in standard small outline packages, addressing the need for compact, reliable components in modern electronic designs requiring high potential differences.

Replacement Considerations

Check for direct substitutes within the HVCB series or other Stackpole high-voltage lines that match the 1206 footprint, 500mOhm resistance, and 1.5 kV rating. Verify termination style compatibility if replacing with non-solder wrap variants.
