HVCB2512DTD1M20

Overview

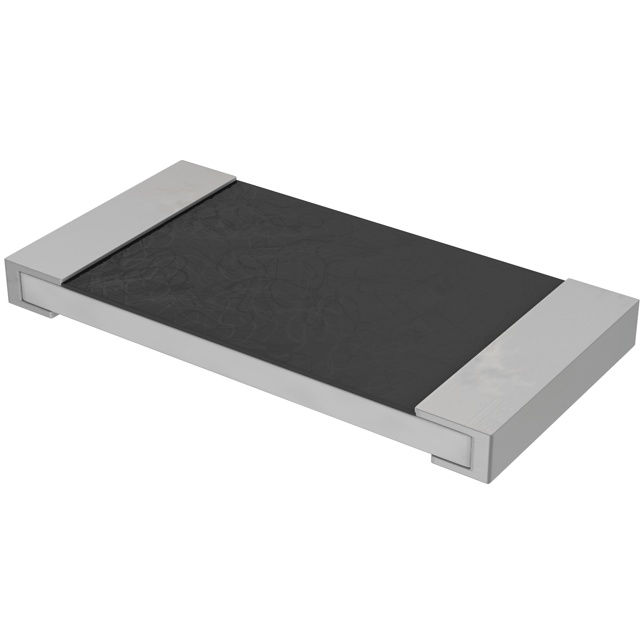

The HVCB2512DTD1M20 is a fixed surface-mount resistor manufactured by Stackpole Electronics Inc. It utilizes thick film technology within the HVC series, designed for high-voltage applications. The component features a 2512 package with dimensions of 6.35 mm length, 3.18 mm width, and 0.76 mm height. It offers a resistance value of 1.2 MOhms with a tolerance of ±0.5%. Rated at 2W power dissipation at 70°C, it withstands up to 3000V maximum working voltage. The temperature coefficient is ±100 ppm/°C, operating between -55°C and +150°C.

Feature Summary

• Engineered for high-voltage environments with superior pulse handling capabilities
• Constructed using thick film technology for ultra-high stability and low noise
• Designed with moisture resistance and robust construction for reliable performance

Applications

• High voltage divider circuits
• Pulse power supply networks
• Medical equipment insulation monitoring
• Industrial control systems requiring high isolation

Procurement Notes

Verify the specific suffix codes against official Stackpole documentation to confirm exact tolerance and temperature coefficient ratings. Ensure the procurement channel provides valid RoHS compliance certificates. Confirm that the packaging format matches the required reel specifications for automated assembly processes.

Selection Notes

Select this component when circuit designs require precise resistance values in high-voltage sections. Consider the 2512 footprint for adequate power dissipation and creepage distance. Evaluate the ±100 ppm/°C stability against environmental thermal variations to ensure long-term signal integrity in critical measurement paths.

Part Context

This part belongs to the HVC series of high-voltage thick film chip resistors from Stackpole Electronics. The series supports ohmic values up to 50GΩ and includes options for tight tolerances down to 0.1%. Standard parts in this line are unmarked and comply with RoHS and REACH regulations without exemption.

Replacement Considerations

HVCB2512FKD1M20
