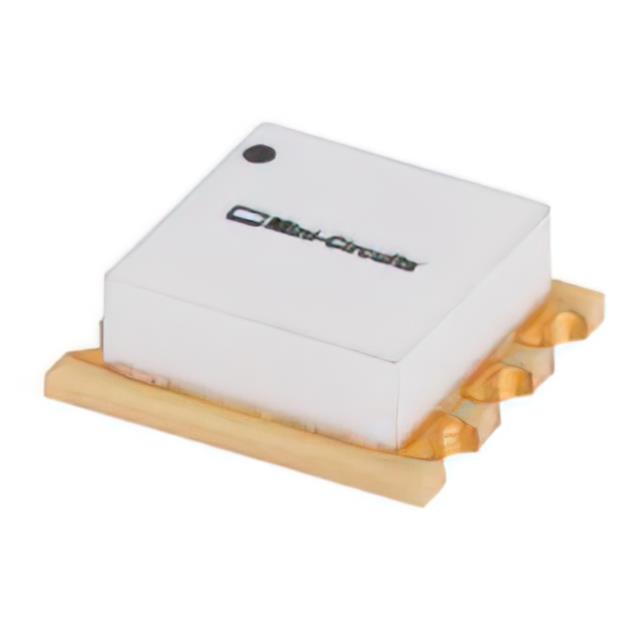

HXG-242+

Overview

The HXG-242+ is an ultra-high IP3 amplifier module from Mini-Circuits, designed for high dynamic range applications. It operates within a frequency range of 700MHz to 2.4GHz. The device features a typical input third-order intercept point (IP3) of 46 dBm. Electrical specifications include a noise figure of 2.2dB and a supply current of 140mA at a test frequency of 2.4GHz. The recommended supply voltage ranges from 4.8V to 5.2V. This component integrates optimization circuits with MMIC technology to deliver linearity with low current consumption.

Feature Summary

• Combines high dynamic range MMIC technology with integrated optimization circuits
• Provides input and output return loss of 10 dB up to 1.5 GHz without external matching networks
• Delivers industry-leading high IP3 performance

Applications

• Wireless LAN systems
• LTE infrastructure
• High linearity RF front-end modules

Procurement Notes

Verify the specific ordering suffix when purchasing, as variations such as TR or CT may indicate different packaging or reel configurations rather than functional changes. Confirm RoHS compliance status through official Mini-Circuits documentation prior to integration. Ensure supply voltage parameters align with system requirements to maintain specified performance levels. Cross-reference datasheet revision dates to guarantee compatibility with latest design guidelines.

Selection Notes

Select this module for applications requiring superior linearity and dynamic range in the 700MHz to 2.4GHz band. The integrated optimization circuits eliminate the need for external matching components up to 1.5 GHz, simplifying PCB layout. Consider the 140mA supply current for power budget calculations. Ideal for designs prioritizing high IP3 metrics while maintaining compact form factors and reduced component count compared to discrete solutions.

Part Context

The HXG-242+ belongs to Mini-Circuits' HXG series of ultra-high IP3 amplifier modules. These components are engineered for wireless communication infrastructure where signal integrity and linearity are critical. The series leverages advanced MMIC processes to achieve high performance in a small surface-mount package. This model specifically targets frequencies up to 2.4 GHz, serving as a key building block for modern RF transceivers.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate alternatives based on identical frequency range, IP3 specifications, and supply voltage requirements. Verify pinout compatibility and thermal characteristics if considering cross-brand replacements. Consult Mini-Circuits for direct equivalents within their portfolio.
