HY330

LED Indication - Discrete Overview

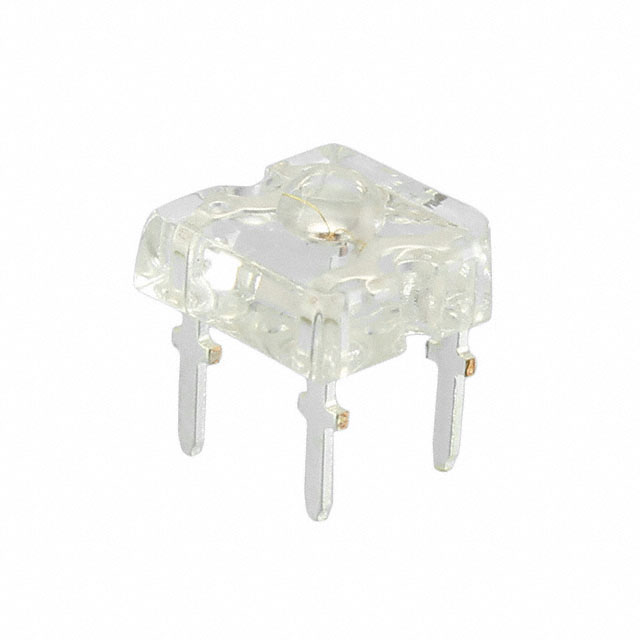

The HY330 is a discrete yellow LED manufactured by Seoul Semiconductor Inc., designed for through-hole mounting in a 4-DIP package. It emits light at a dominant wavelength of 590nm with a typical forward voltage of 2.6V. The component operates at a test current of 70mA, achieving a millicandela rating of 4000mcd. It features a viewing angle of 90 degrees and utilizes gallium arsenide materials.

LED Indication - Discrete Feature Summary

• High flux yellow emission
• Through-hole 4-DIP packaging
• Wide viewing angle

LED Indication - Discrete Applications

• Indicator lighting
• Panel status indication
• General purpose signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm exact binning and packaging configuration. Ensure compatibility with standard through-hole assembly processes. Confirm material safety data regarding gallium arsenide disposal requirements. Cross-reference datasheet revisions for any updates to electrical characteristics or mechanical dimensions before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component when high brightness yellow indication is required in through-hole designs. Consider the 2.6V forward voltage drop for circuit design calculations. Evaluate the 4-DIP footprint against available PCB space. Assess the 90-degree viewing angle suitability for the intended visual application context.

LED Indication - Discrete Part Context

This part belongs to Seoul Semiconductor's discrete LED lineup, focusing on high-flux visible light output. The HY330 series targets applications requiring reliable through-hole mounting solutions. It represents a standard optoelectronic component for industrial and consumer electronics indicator circuits.

LED Indication - Discrete Replacement Considerations

Check for direct pin-compatible substitutes from Seoul Semiconductor or other manufacturers offering similar 590nm wavelength and 4-DIP form factor. Verify matching forward voltage and current ratings to ensure circuit compatibility without redesign.
