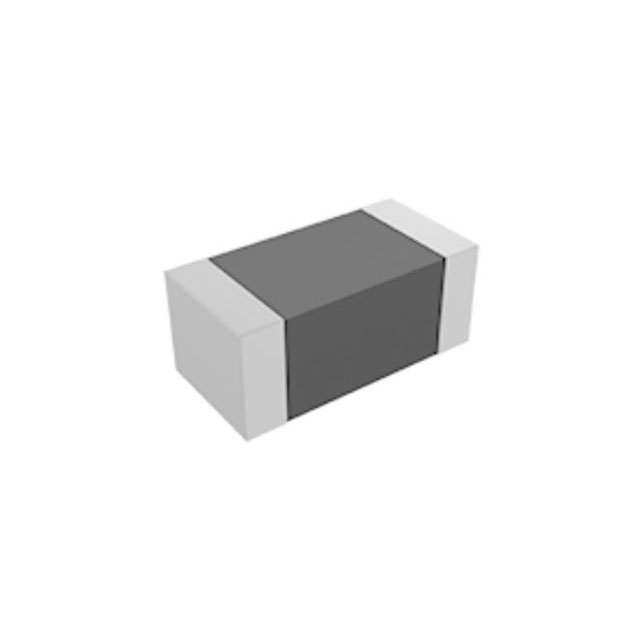

HZ1608K471TF

Chip Ferrite Bead Overview

HZ1608K471TF is a multi-layer chip ferrite bead manufactured by Shenzhen Sunlord Electronics Co., Ltd. in a 0603 (1608 Metric) surface-mount package. It provides an impedance of 470 Ohms at 100 MHz with a maximum DC resistance of 1.2 Ohms and a rated current of 100 mA. The component utilizes a ferrite core to suppress electromagnetic interference and noise signals in high-frequency circuits.

Chip Ferrite Bead Feature Summary

• Multi-layer construction for compact high-frequency noise suppression
• Ferrite core material for effective electromagnetic interference filtering
• Surface-mount design suitable for automated assembly processes

Chip Ferrite Bead Applications

• High-frequency signal line noise suppression
• Electromagnetic interference filtering in consumer electronics
• Power supply output noise reduction

Chip Ferrite Bead Procurement Notes

Verify the specific datasheet revision and impedance characteristics against the official Shenzhen Sunlord Electronics documentation. Confirm that the 0603 package dimensions and terminal configurations match the target PCB layout requirements. Ensure compliance with RoHS standards as indicated in the manufacturer specifications before finalizing procurement orders.

Chip Ferrite Bead Selection Notes

Select this component when a low-profile 0603 ferrite bead is required for noise suppression in space-constrained designs. Consider the 100 mA current rating and 1.2 Ohm DC resistance to ensure compatibility with the circuit's power budget. Evaluate the 470 Ohm impedance at 100 MHz to verify effectiveness against the specific noise frequencies present in the application environment.

Chip Ferrite Bead Part Context

The HZ1608K471TF belongs to the HZ series of multi-layer chip ferrite beads produced by Shenzhen Sunlord Electronics. This series is designed for general-purpose noise suppression in portable electronic devices and communication equipment. The 0603 footprint allows for dense board layouts while maintaining reliable performance in suppressing high-frequency electromagnetic disturbances.

Chip Ferrite Bead Replacement Considerations

Cross-reference with other 0603 ferrite beads offering similar 470 Ohm impedance at 100 MHz. Verify that alternative components meet the same 100 mA current handling and 1.2 Ohm DC resistance limits to maintain circuit integrity without modification.
