HZS6.2NB2-1TA-E

Single Zener Diodes Overview

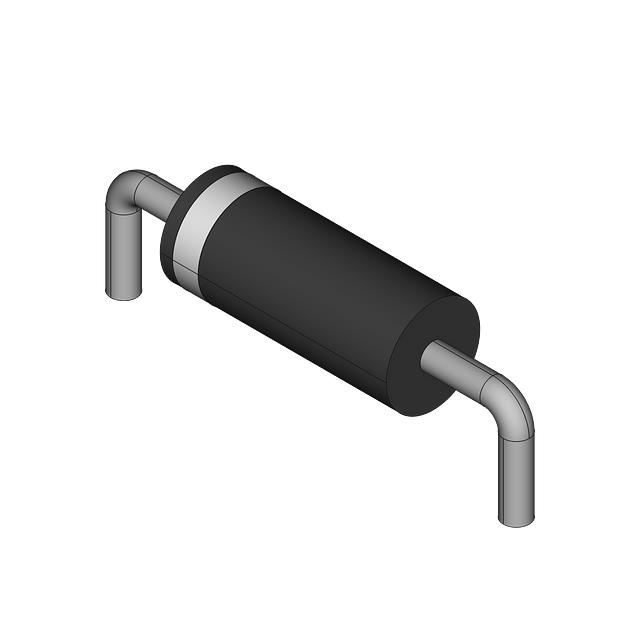

The HZS6.2NB2-1TA-E is a silicon epitaxial planar Zener diode manufactured by Renesas Electronics Corporation, designed for stabilized power supply applications. It operates as a unidirectional voltage regulator with a nominal Zener voltage of 6.2V and a maximum power dissipation of 0.4W (400mW). The component utilizes a DO-34 axial leaded package configuration. This device provides independent regulation functionality within the single Zener diode category, suitable for general-purpose voltage reference and protection circuits requiring stable DC output levels.

Single Zener Diodes Feature Summary

• Utilizes silicon epitaxial planar technology for reliable voltage regulation
• Designed specifically for stabilized power supply applications
• Provides unidirectional voltage control characteristics

Single Zener Diodes Applications

• Stabilized power supply circuits
• Voltage reference generation
• General-purpose voltage regulation

Single Zener Diodes Procurement Notes

Verify the specific suffix -1TA-E against official Renesas documentation to confirm package type and tape/reel specifications. Ensure compatibility with DO-34 footprint requirements in the target design. Cross-reference part numbers carefully as suffix variations may indicate different packaging or testing criteria without altering the core electrical function.

Single Zener Diodes Selection Notes

Select this component when a 6.2V Zener voltage with 0.4W power handling is required in an axial package. Consider the DO-34 form factor for through-hole mounting constraints. Evaluate thermal management needs relative to the 400mW dissipation limit in the intended circuit environment.

Single Zener Diodes Part Context

This part belongs to the HZS series of silicon Zener diodes from Renesas, which are engineered for robust performance in power conditioning roles. The series typically includes variants with different voltage ratings and power capabilities, sharing common manufacturing processes for consistency in regulated power applications across industrial and consumer electronics sectors.

Single Zener Diodes Replacement Considerations

Publicly confirmed substitute part numbers for HZS6.2NB2-1TA-E were not identified in the provided source material. Verify cross-references using official manufacturer databases before substitution.
