I-F-50.000M-16-1030-2070-30

Crystals Overview

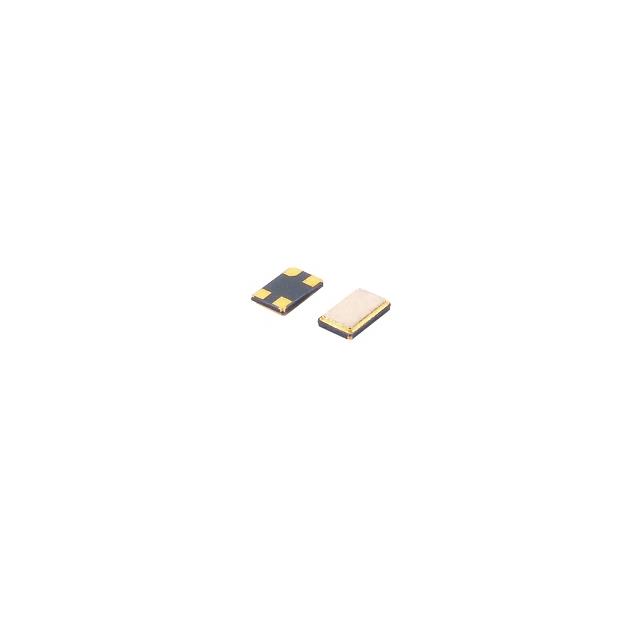

The CEC Xtal I-F-50.000M-16-1030-2070-30 is a surface-mount crystal resonator operating at a fundamental frequency of 50 MHz. It features a load capacitance of 16 pF and offers a frequency stability of ±10 ppm. The component is designed for operation within an industrial temperature range of -20°C to +70°C. It utilizes a 4-SMD, no lead package configuration suitable for automated assembly processes.

Crystals Feature Summary

• Provides precise 50 MHz timing signals with high frequency stability
• Designed for compact surface-mount electronic circuit integration
• Operates reliably across extended industrial temperature environments

Crystals Applications

• Communication device clock generation
• Industrial control system timing references
• Automotive electronics signal processing

Crystals Procurement Notes

Verify the specific manufacturer datasheet for complete electrical characteristics and mechanical dimensions before finalizing design integration. Confirm that the 4-SMD package footprint matches the intended PCB layout requirements. Ensure the ±10 ppm stability meets the system timing accuracy specifications. Validate the -20°C to +70°C operating range against environmental conditions.

Crystals Selection Notes

Select this component when a stable 50 MHz reference is required in space-constrained designs. Consider the 16 pF load capacitance compatibility with the host oscillator circuit. Evaluate the surface-mount form factor for manufacturing efficiency. Assess the temperature stability requirements against the specified industrial grade limits.

Crystals Part Context

This part belongs to the CEC Xtal crystal series, manufactured by Nanjing China Electronics Panda Crystal Technology. The company specializes in quartz resonators for various electronic applications. This specific model represents a standard surface-mount crystal variant optimized for modern PCB assembly techniques.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels for direct equivalents or cross-reference lists.
