I538-1R6-40.000MHZ

Oscillators Overview

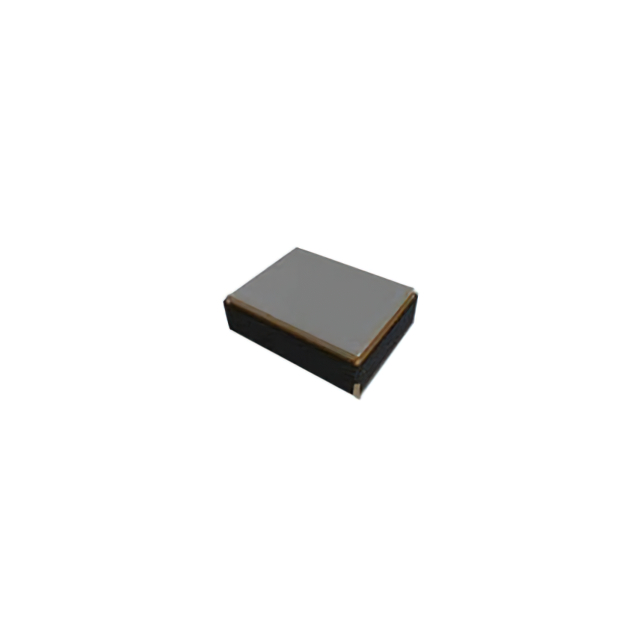

The I538-1R6-40.000MHZ is a temperature-compensated crystal oscillator (TCXO) manufactured by ILSI. It operates at a nominal frequency of 40 MHz with CMOS output levels and a supply voltage of 2.5 V. The device features a frequency stability of ±3 ppm and draws a maximum supply current of 6 mA. Designed for surface-mount installation, it utilizes a 4-pin leadless SMD package. The operational temperature range spans from 0°C to 70°C.

Oscillators Feature Summary

• Temperature-compensated design ensures stable frequency performance across operating temperatures
• CMOS logic output levels compatible with standard digital interfaces
• Compact leadless surface-mount package facilitates automated assembly

Oscillators Applications

• Embedded systems requiring precise timing references
• Industrial automation equipment
• General electronics applications

Oscillators Procurement Notes

Verify the specific pinout configuration and mechanical dimensions against the official datasheet before integration. Confirm that the 2.5 V supply voltage aligns with the target circuit design. Ensure the 0°C to 70°C operating range meets environmental requirements. Cross-reference the leadless package type with PCB footprint specifications to prevent mounting errors during production.

Oscillators Selection Notes

Select this component when a low-cost TCXO solution is required for 40 MHz applications. The ±3 ppm stability offers improved accuracy over standard crystals without the complexity of OCXOs. Consider the 2.5 V supply constraint and 6 mA current draw for power budgeting. The leadless SMD form factor is suitable for space-constrained designs where standard packages are unavailable.

Oscillators Part Context

This part belongs to the ILSI TCXO product line, which provides temperature-compensated oscillators for various frequency needs. ILSI America specializes in quartz crystal products and timing devices. The I538 series represents a specific family of compact oscillators designed for cost-sensitive consumer and industrial markets.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative suppliers based on electrical parameters and package dimensions.
