I547-2P3-16.000 MHZ

Oscillators Overview

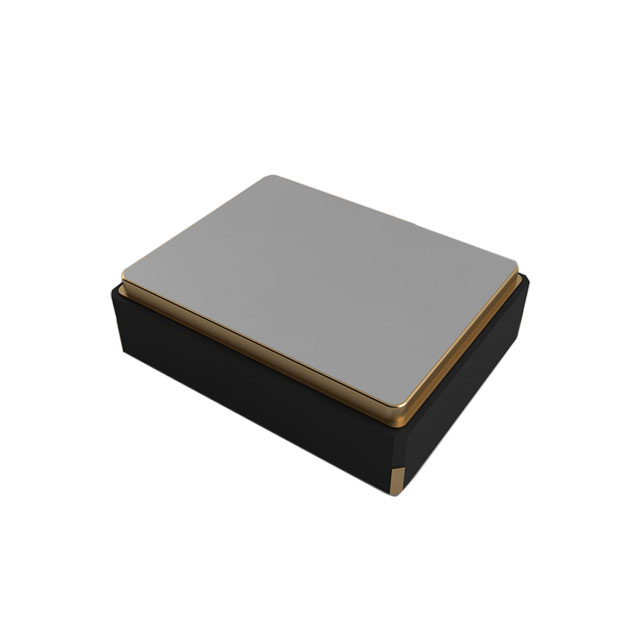

The ILSI I547-2P3-16.000 MHZ is a temperature-compensated crystal oscillator (TCXO) designed for surface-mount applications. It operates at a nominal frequency of 16 MHz with a peak shaving sine wave output type. The device requires a supply voltage of 3.3V and draws a maximum supply current of 1.5mA. It features high frequency stability of ±2ppm and time stability of ±1ppm/year. The component is housed in an SMD3225-4P package with dimensions of 3.2x2.5x1.2mm and supports an operating temperature range from -40℃ to +85℃.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across varying thermal conditions
• Compact surface-mount design facilitates automated assembly and space-constrained layouts
• High precision stability minimizes timing errors in sensitive digital circuits

Oscillators Applications

• Communication systems requiring precise clock synchronization
• Portable electronic devices needing low power consumption
• Industrial control equipment operating in variable temperatures

Oscillators Procurement Notes

Verify the specific suffix codes against official ILSI documentation to confirm exact electrical characteristics and packaging options. Ensure compatibility with your system's voltage requirements and thermal environment before finalizing orders. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Oscillators Selection Notes

Choose this model when precise frequency stability is critical for system timing. Consider the ±2ppm stability and wide temperature range for harsh environments. Verify that the 3.3V supply and low current draw align with your power budget constraints.

Oscillators Part Context

This component belongs to the ILSI I547 series of TCXOs, which are engineered for reliability in demanding applications. The series offers various frequency options within the same compact footprint, allowing designers to standardize on a single package type while adjusting for specific clock requirements.

Oscillators Replacement Considerations

Compatible substitutes include other ILSI I547 variants with matching frequencies or pin-compatible TCXOs from manufacturers like ABLIC or SemiKey, provided they meet the same electrical and mechanical specifications.
