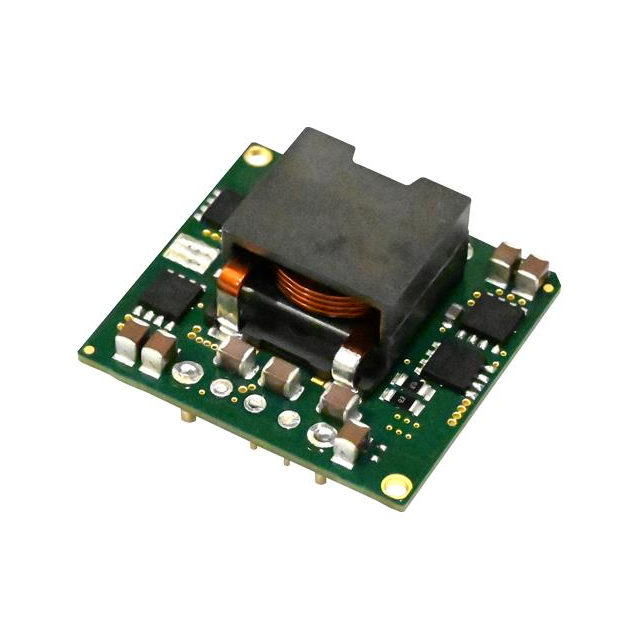

I7C2W020A120V-003-R

I7C2W020A120V-003-R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 8-24V 300W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for I7C2W020A120V-003-R

• Description：DC DC CONVERTER 8-24V 300W
• Series：I7c (300W)
• Mfr：TDK-Lambda
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：8 ~ 24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：300 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：97%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.45" L x 1.34" W x 0.58" H (36.8mm x 34.0mm x 14.7mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for I7C2W020A120V-003-R

Explore related parts through Power Supplies - Board Mount, all product categories, ChipApex homepage.
