ICE5LP1K-SWG36ITR

Field Programmable Gate Array Overview

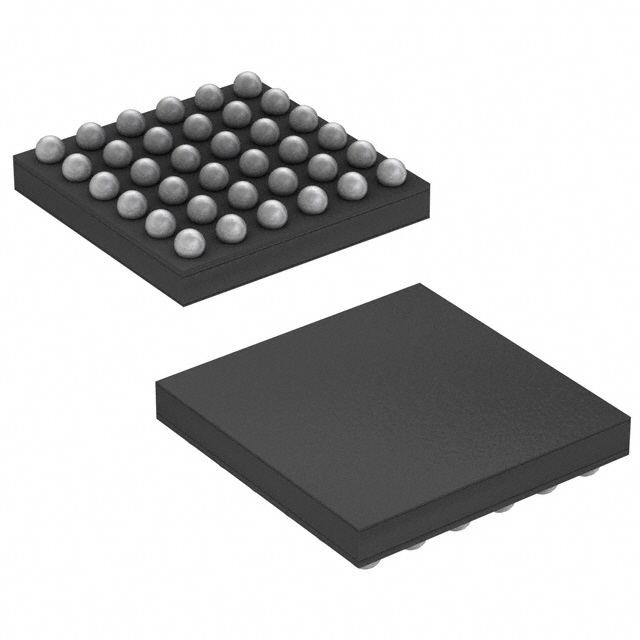

The ICE5LP1K-SWG36ITR is an iCE40 Ultra FPGA featuring 1100 logic cells, 64 kbit embedded block RAM, and one PLL. It includes hardened SPI and I2C interfaces, two on-chip oscillators (10 kHz LFOSC, 48 MHz HFOSC), three 24 mA RGB LED sinks, and one 500 mA IR LED sink. The device operates within a supply voltage range of 1.14 V to 1.26 V, supports temperatures from -40°C to +100°C, and utilizes a 36-ball WLCSP package with a 0.35 mm pitch.

Field Programmable Gate Array Feature Summary

• Ultra-low power architecture designed for mobile applications
• Integrated hardened SPI and I2C controllers for sensor interfacing
• On-chip oscillators providing low frequency and high frequency clock sources
• High current LED drivers supporting direct RGB and IR LED control

Field Programmable Gate Array Applications

• Smartphones and tablets
• Consumer handheld devices
• Multi-sensor management applications
• USB 3.1 Type C cable detect and power delivery applications

Field Programmable Gate Array Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct package type and temperature rating. Confirm that the required design tools support the iCE40 Ultra family architecture. Check for any recent product change notices regarding pinout or electrical specifications before finalizing procurement plans.

Field Programmable Gate Array Selection Notes

Select this component when designs require ultra-low standby current and small form factor integration. The 1100 logic cell density suits moderate complexity tasks. Ensure the application benefits from the integrated LED drivers and hardened communication interfaces to reduce external component count.

Field Programmable Gate Array Part Context

This part belongs to the Lattice iCE40 Ultra family, which targets mobile and consumer electronics. It shares architectural features with other members like the iCE5LP2K and iCE5LP4K, differing primarily in logic density and memory capacity while maintaining similar peripheral blocks and package options.

Field Programmable Gate Array Replacement Considerations

Compatible substitutes within the same family include the iCE5LP2K-SWG36ITR and iCE5LP4K-SWG36ITR. These parts offer higher logic densities but maintain pin compatibility in the 36-ball WLCSP package. Verify software configuration compatibility when migrating between densities.
