ICE65L01F-LVQ100I

Field Programmable Gate Array Overview

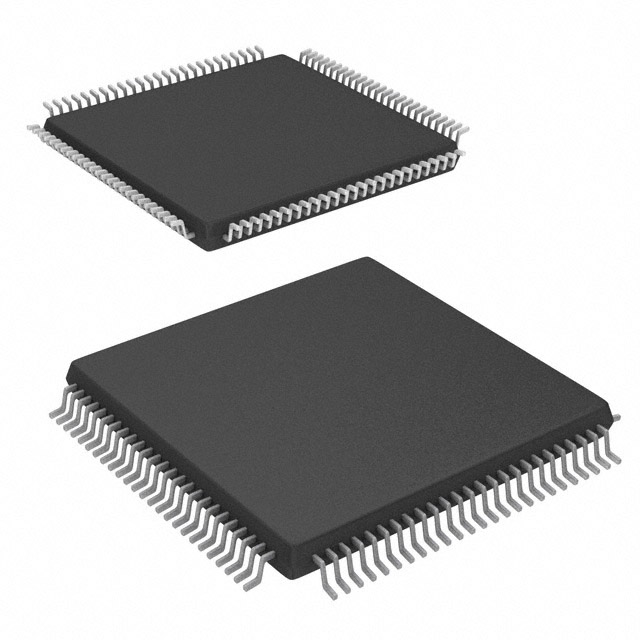

The Lattice Semiconductor iCE65L01F-LVQ100I is a low-power mobile FPGA from the iCE65 family, utilizing 65 nm CMOS technology. It features 1,280 logic cells (LUT4s) and 16 RAM4K memory blocks providing 64 Kbits of storage. The device supports up to 95 programmable I/O pins in a 100-pin VQ100 package with a 0.5 mm pitch. It operates at a typical static current of 12 µA at 1.0 V and includes Nonvolatile Configuration Memory (NVCM).

Field Programmable Gate Array Feature Summary

• Integrates Nonvolatile Configuration Memory (NVCM) for secure, instant-on operation.
• Features four independently powered I/O banks supporting multiple voltage standards.
• Includes dedicated carry logic to accelerate arithmetic functions like adders and counters.

Field Programmable Gate Array Applications

• Cost-sensitive high-volume consumer electronics
• Battery-powered handheld devices requiring extended battery life
• System bridging between different interface voltage standards

Field Programmable Gate Array Procurement Notes

Verify that the ordering suffix matches the specific package style and temperature range required for your application. Confirm whether the component requires NVCM programming or standard reprogrammable configuration based on production volume and intellectual property protection needs.

Field Programmable Gate Array Selection Notes

Select this model when approximately 1,280 logic cells are sufficient for the design. Ensure the 100-pin VQ100 package fits the board space constraints. Verify that the maximum of 95 user-programmable I/O pins meets the system interface requirements.

Field Programmable Gate Array Part Context

This part belongs to the iCE65 Ultra Low-Power mobileFPGA family, designed specifically for hand-held applications. It offers two power/speed options: Low Power (-L) and High Speed (-T), with the -L variant prioritizing minimal static and dynamic power consumption.

Field Programmable Gate Array Replacement Considerations

Check pin compatibility with other densities in the same package, such as the iCE65L04 or iCE65L08, if migration to higher logic capacity is needed. Note that while footprints may be common, full pin compatibility should be verified in the datasheet.
